WM-C Single Section Wall Mount Network Cabinet | 19-Inch Rack Enclosure

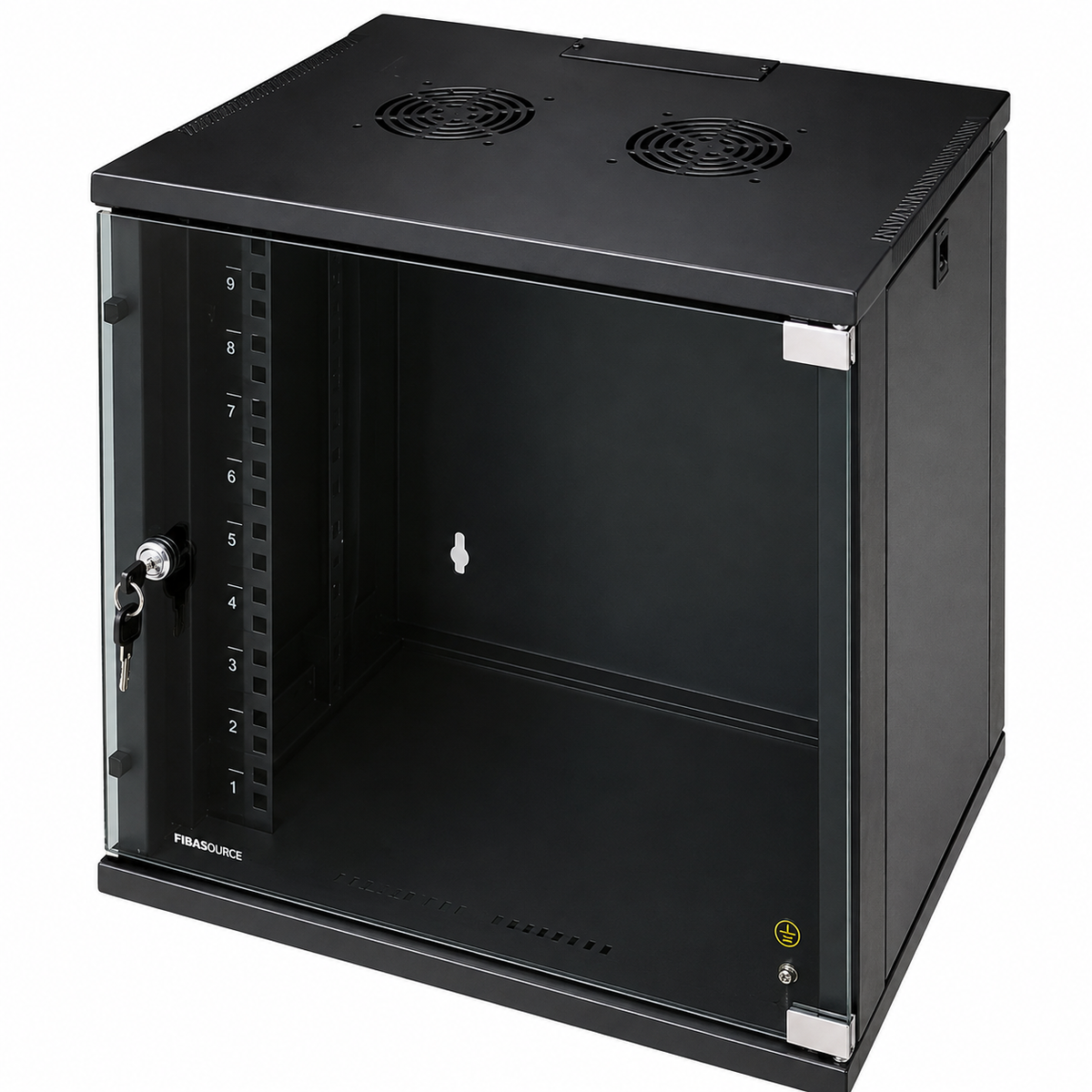

WM-C Single Section Wall Mount Network Cabinet

The WM-C Single Section Wall Mount Network Cabinet is a durable and space-saving wall-mounted network cabinet designed to securely house standard 19-inch network, telecommunications, and IT equipment. Its robust steel frame and tempered glass front door provide reliable equipment protection while allowing clear visibility and convenient access to installed equipment.

The WM-C features an adjustable L-shaped mounting profile, bolted side panels, and top and bottom cable entry points for flexible installation and efficient cable management. The top cover includes a fan cutout for easy installation of a cooling fan to support effective ventilation.

The cabinet is supplied disassembled/flat-packed, helping to reduce shipping space and making transportation, handling, and storage more convenient. Its compact single-section design makes it suitable for offices, server rooms, telecommunications areas, and other professional IT environments.

Key Features

• 19-Inch Standard Equipment Compatible – Designed to accommodate standard 19-inch rack-mounted network, telecommunications, and IT equipment.
• Durable Steel Frame – Strong steel construction with precise craftsmanship for reliable equipment protection.
• Tempered Glass Front Door – Provides clear visibility of installed equipment while offering secure protection and convenient access.
• Complete Tempered Glass Front Door Structure – Provides a robust front enclosure designed for dependable everyday use.
• Adjustable L-Shaped Mounting Profile – Allows flexible positioning and adjustment along the mounting rail.
• Bolted Side Panels – Secure side panels provide convenient access for installation and maintenance.
• Top & Bottom Cable Entry – Cable entry points with cover plates provide flexible cable routing and help keep installations organised.
• Top Fan Cutout – Allows easy installation of a cooling fan to support effective equipment ventilation.
• Wall-Mount Design – Space-saving design keeps network equipment organised while freeing valuable floor space.
• Single-Section Design – Compact enclosure suitable for network, telecommunications, and IT equipment installations.
• Easy Installation & Maintenance – Practical construction provides convenient access during equipment installation and servicing.
• Flat-Pack Construction – Supplied disassembled/flat-packed for space-efficient shipping, easier transportation, handling, and storage. Assembly is required before installation.

• Material: SPCC quality cold rolled steel
• Thickness: Mounting profile: 1.2 mm; other: 1.0 mm
• Static Loading Capacity: 60 kg
• Degree of Protection: IP20
• Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated

Designed to comply with the following applicable rack and equipment standards:

• ANSI/EIA RS-310-D
• IEC 297-2
• DIN 41497 Part 1
• DIN 41494 Part 7
• GB/T 3047.2-92


These standards specify dimensional, mounting, and mechanical requirements for 19-inch racks, cabinets, mounting rails, panels, and associated equipment.
