WM-B Single Section Wall Cabinet

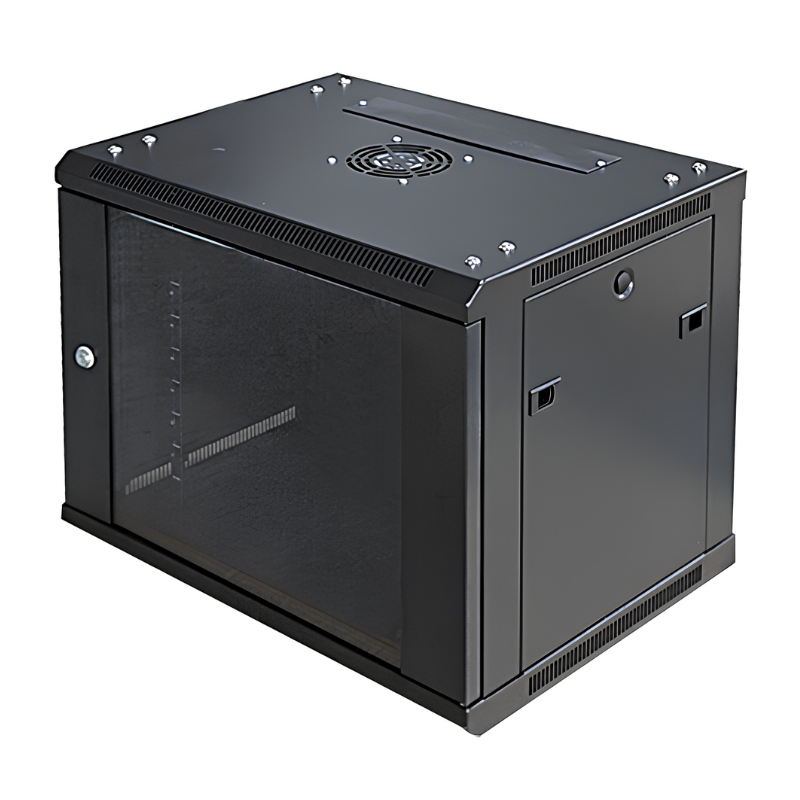

The WM-B Single Section Wall Cabinet is a durable and space-saving wall-mounted network cabinet designed to securely house standard 19-inch network and IT equipment. Its steel frame provides reliable equipment protection, while the tempered glass front door offers clear visibility and opens over 180° for convenient access.

The cabinet features an adjustable L-shaped mounting profile, removable back panel, bolted side panels, and top and bottom cable entry points for flexible installation and easier cable management. A top fan cutout allows for ventilation fan installation, making the WM-B suitable for offices, server rooms, telecommunications installations, and other professional IT environments.

Key Features

• 19-Inch Standard Equipment Compatible – Designed for standard 19-inch rack-mounted network and IT equipment.
• Durable Steel Frame – Strong steel construction with precise craftsmanship for reliable equipment housing.
• Tempered Glass Front Door – Provides clear visibility and opens over 180° for convenient equipment access.
• Adjustable L-Shaped Mounting Profile – Allows flexible adjustment along the mounting rail.
• Removable Back Panel – Simplifies wall mounting, installation, and equipment maintenance.
• Bolted Side Panels – Provides secure enclosure while allowing convenient access when required.
• Top & Bottom Cable Entry – Knock-out or cover plates provide flexible cable routing and management.
• Top Fan Cutout – Allows easy installation of a cooling fan for improved equipment ventilation.
• Wall-Mount Design – Helps save floor space while keeping network equipment organised and accessible.
• Flat-Pack Construction – Designed for space-efficient shipping, easier transportation, and convenient handling.
• Unassembled Structure – Supplied in a format designed for straightforward assembly and installation.
• Made-to-Order / Customisable – Can be configured to meet specific installation requirements, where applicable.

• Material: SPCC quality cold rolled steel
• Thickness: Mounting profile: 1.2 mm; other: 1.0 mm
• Static Loading Capacity: 60 kg
• Degree of Protection: IP20
• Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated

Designed to comply with the following applicable rack and equipment standards:

• ANSI/EIA RS-310-D
• IEC 297-2
• DIN 41497 Part 1
• DIN 41494 Part 7
• GBT 3047.2-92

These standards specify dimensional, mounting, and mechanical requirements commonly used for 19-inch racks, cabinets, mounting rails, panels, and associated equipment.
