WM-A Single Section Wall Mount Network Cabinet | Server Rack Enclosure

WM-A Single Section Wall Cabinet

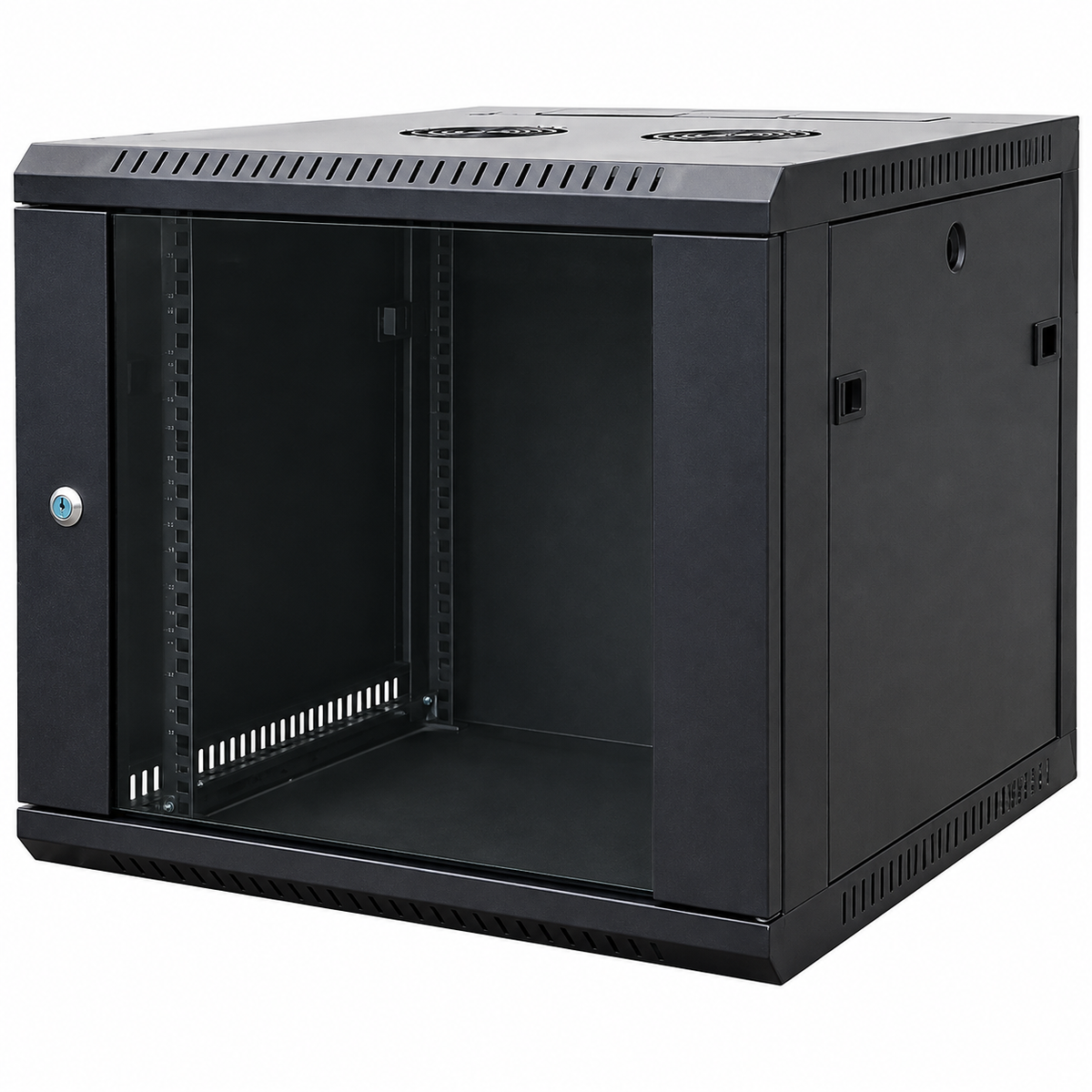

The WM-A Single Section Wall Cabinet is a compact and durable wall-mounted network cabinet designed to securely house standard 19-inch network, telecommunications, and IT equipment. Its space-saving design makes it ideal for offices, server rooms, commercial installations, and other areas where floor space is limited.

Constructed from a durable steel frame with a tempered glass front door, the WM-A provides secure equipment storage while allowing clear visibility of installed devices. The cabinet is supplied disassembled/flat-packed, helping save shipping space and making it convenient to transport and assemble. Removable panels and practical cable management features provide convenient access for installation, maintenance, and equipment management.

Key Features

• 19-Inch Standard Equipment Compatibility – Designed to accommodate standard 19-inch rack-mounted network and IT equipment.
• Durable Steel Frame – Provides a strong and stable structure for reliable equipment installation.
• Disassembled/Flat-Packed Design – The cabinet is supplied disassembled/flat-packed to save shipping space and facilitate convenient transportation and assembly.
• Tempered Glass Front Door – Provides clear visibility of installed equipment while offering secure enclosure and protection.
• Removable Side Panels – Allow easy access for equipment installation, maintenance, and management.
• Optional Side Panel Lock – Provides additional security for installed equipment.
• Top & Bottom Cable Entry – Cable routing openings help keep network and power cables organised and accessible.

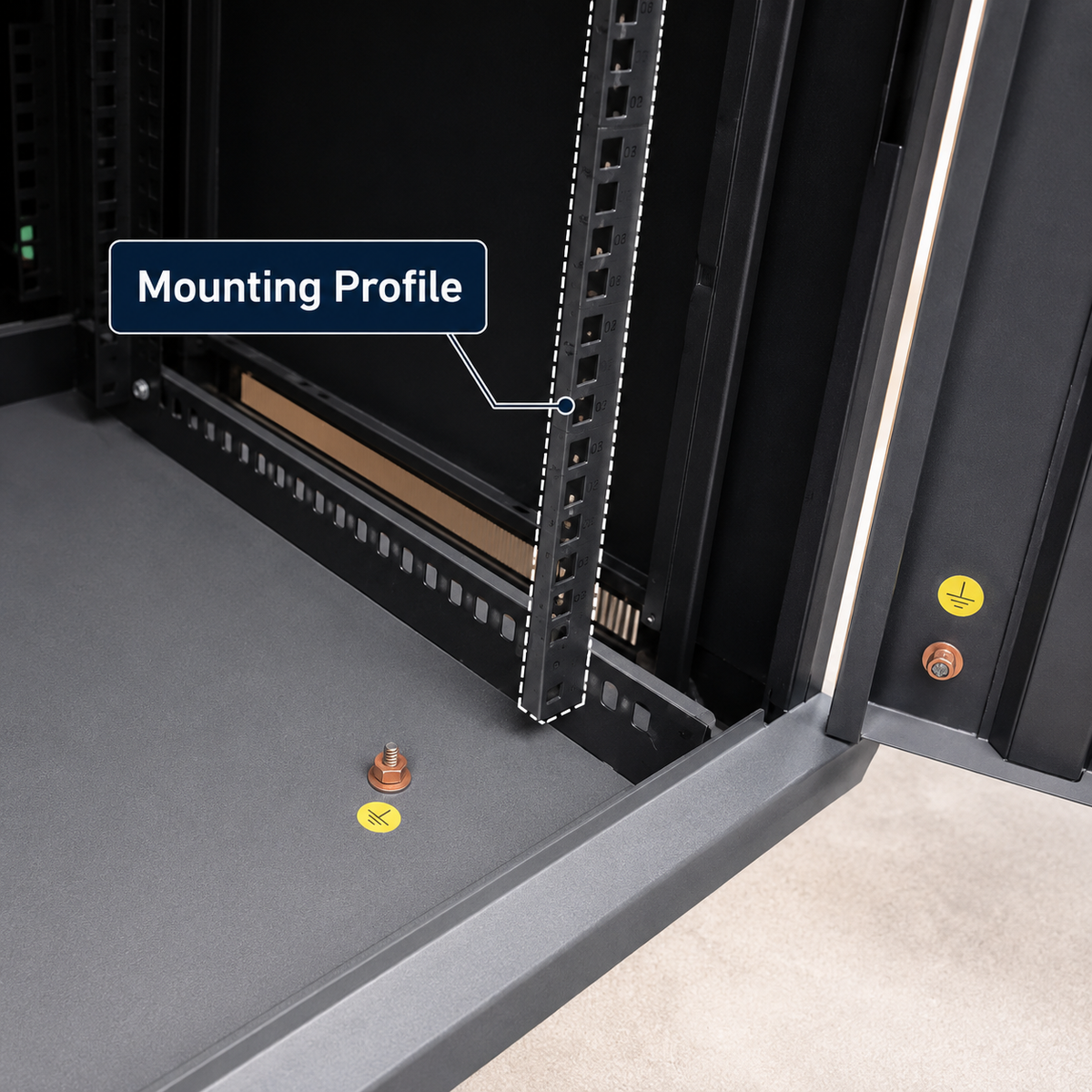

• Adjustable L-Shaped Mounting Profile – Allows flexible positioning along the mounting rail for convenient equipment installation.
• Wall-Mountable Design – Provides a space-efficient solution for installing network and IT equipment where floor space is limited.

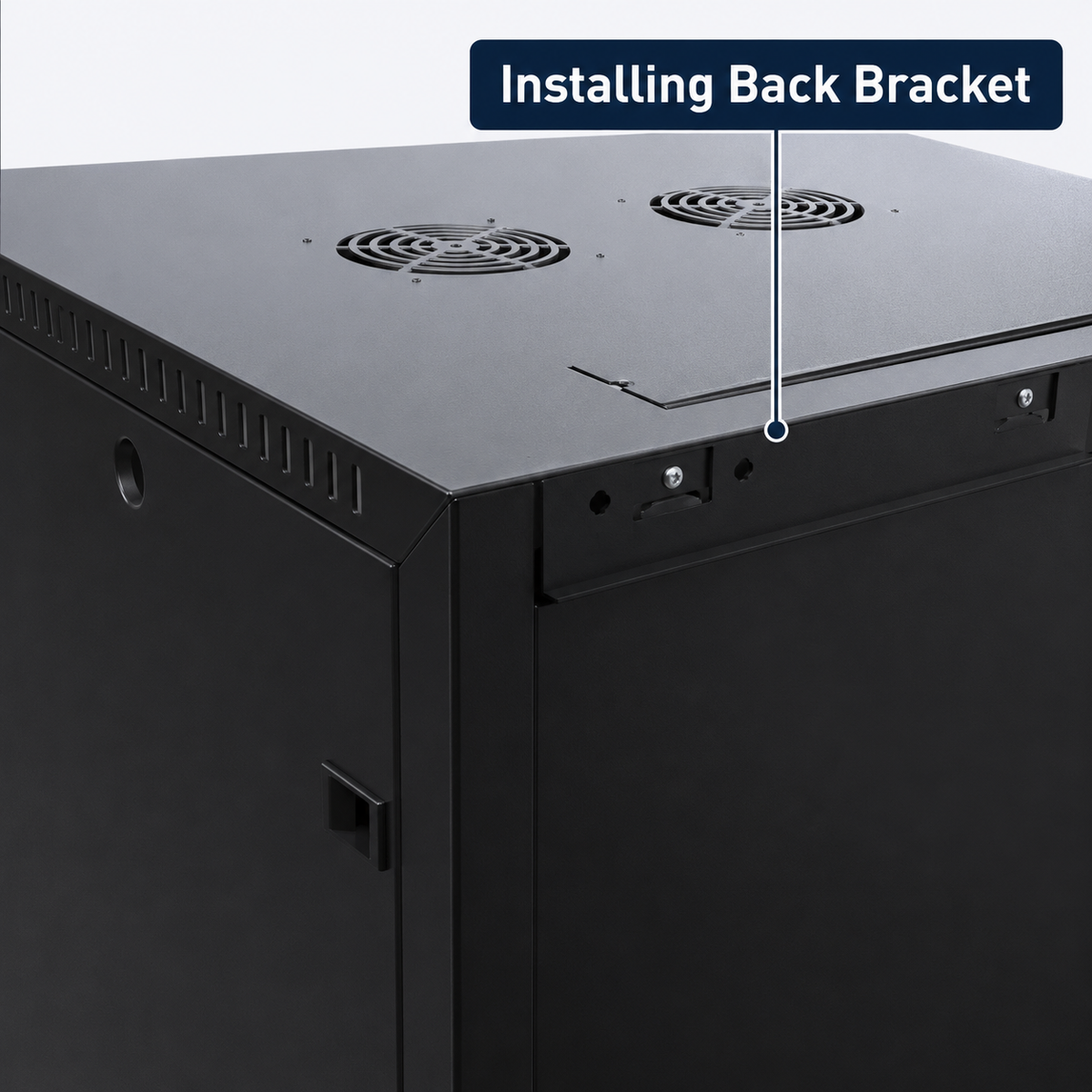

• Removable Back Panel – Provides easier access during installation, setup, and maintenance.
• Professional Network Enclosure – Suitable for offices, telecommunications installations, server rooms, and other IT environments.

• Material: SPCC quality cold rolled steel
• Thickness: Mounting profile: 1.2 mm; other: 1.0 mm
• Static Loading Capacity: 60 kg
• Degree of Protection: IP20
• Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated

Designed to comply with the following applicable rack and equipment standards:

• ANSI/EIA RS-310-D
• IEC 60297-2
• DIN 41494 Part 1
• DIN 41494 Part 7
• GB/T 3047.2-92


These standards specify dimensional, mounting, and mechanical requirements for 19-inch racks, cabinets, mounting rails, panels, and associated equipment.
