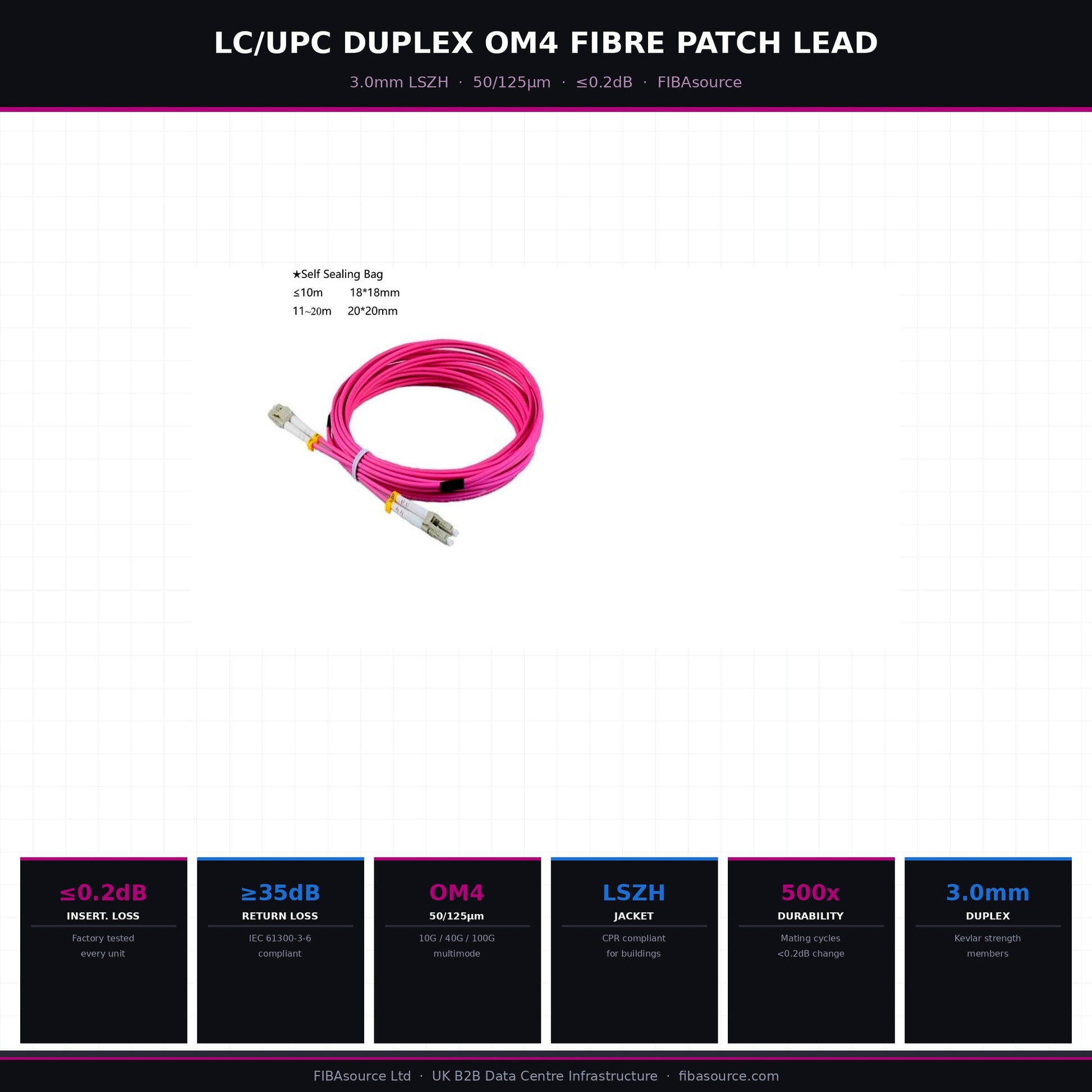

FIBAsource LC/UPC to LC/UPC Duplex OM4 Fibre Patch Lead — 3.0mm LSZH | Available in Multiple Lengths

Specialising in fibre patch leads for high-density data centre, SAN, or structured cabling environments demands consistent optical performance, verified compliance, and long-term mechanical reliability. Our LC/UPC to LC/UPC Duplex OM4 Patch Lead meets all three — factory-tested to IEC 61300-3-4 and IEC 61300-3-6 (BS EN 61300-3-4 / BS EN 61300-3-6), with individually labelled insertion loss and return loss values on every unit before despatch.

Built on a 50/125µm OM4 multimode fibre core, this patch lead delivers guaranteed ≤0.2dB insertion loss and ≥35dB return loss — performance figures that hold across 500 mating cycles. The 3.0mm duplex LSZH outer jacket carries full CPR compliance for use in occupied buildings and air-handling spaces, and the violet/magenta colour coding conforms to the OM4 industry standard for immediate visual identification in high-density patching environments.

LC/UPC duplex connectivity supports 10G, 40G and 100G multimode applications over standard data centre link lengths. Kevlar strength members protect against pull-force damage during installation, and the -20°C to +75°C operating range ensures reliable performance across both controlled data centre and industrial environments.

Available in lengths from 0.5m to 30m. Select your required length from the variant selector above.

KEY FEATURES

• ≤0.2dB insertion loss — individually tested and labelled on every unit
• ≥35dB return loss — verified to IEC 61300-3-4 / BS EN 61300-3-4
• 500 mating cycles rated at <0.2dB degradation — long-term mechanical reliability
• OM4 50/125µm multimode fibre — supports 10G, 40G and 100G applications
• LC/UPC to LC/UPC duplex — universal data centre and SAN connector format
• 3.0mm duplex LSZH outer jacket — CPR compliant for occupied buildings and plenum spaces
• Violet/magenta colour coding — OM4 industry standard identification
• IEC 61300-3-4 and IEC 61300-3-6 end-face geometry verification
• Kevlar strength members — pull-force protection during installation
• Serial number and IL/RL values labelled on every unit
• Available 0.5m to 30m

STANDARDS AND CERTIFICATIONS

IEC 61300-3-4 (BS EN 61300-3-4) | IEC 61300-3-6 (BS EN 61300-3-6) | RoHS Compliant | LSZH CPR Compliant
