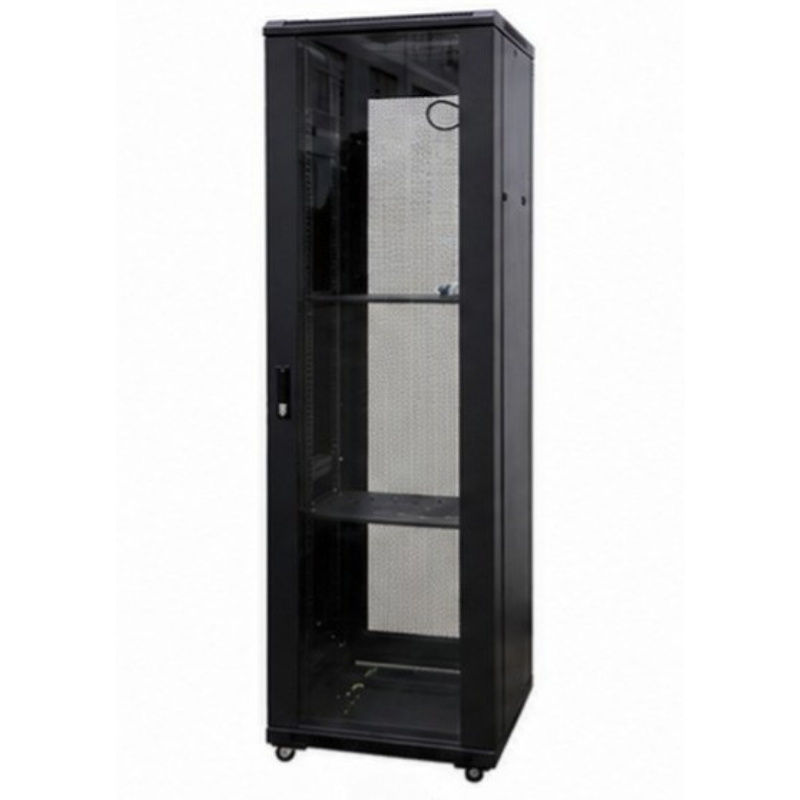

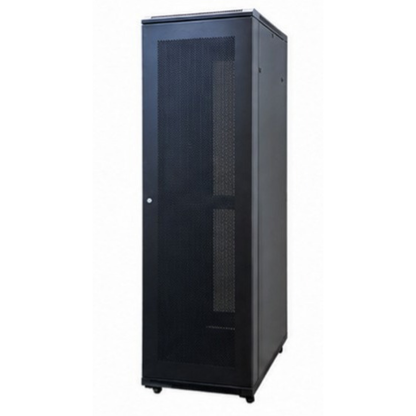

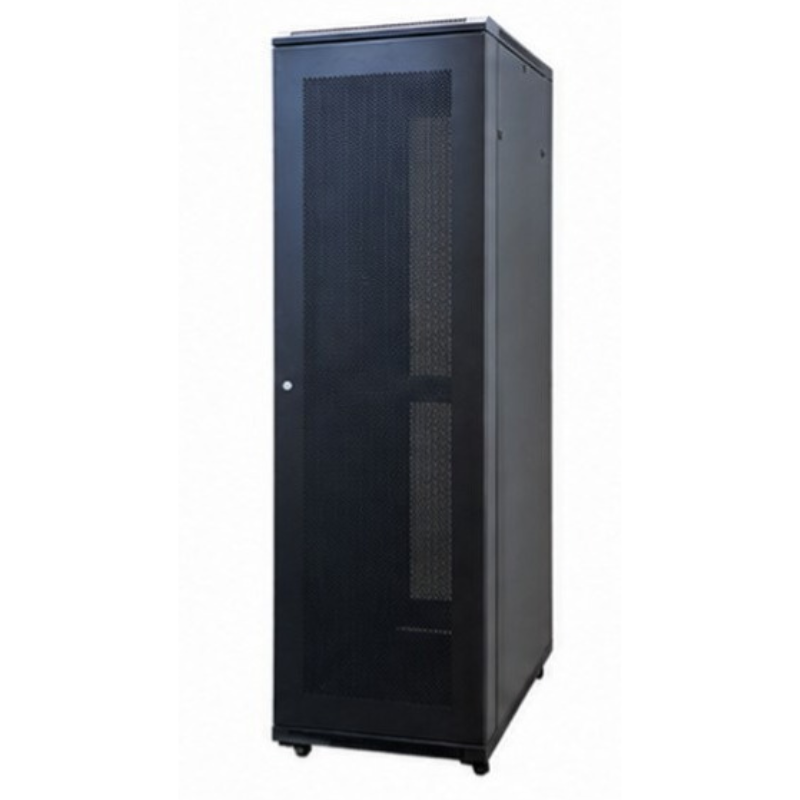

JS Standing Network Cabinet

JS Standing Network Cabinet

The JS Standing Network Cabinet is a durable, space-efficient solution for securely housing network, server and telecommunications equipment. Constructed from precision-welded steel, it features high-density vented front and rear doors for improved airflow, adjustable mounting profiles, secure locking, and convenient top and bottom cable entry.

Designed for easy transportation and installation, the cabinet is supplied flat-packed, reducing package volume to approximately 40% of its assembled size and helping minimise shipping and storage requirements. Adjustable feet, castors, removable side panels and a wide range of optional accessories provide flexibility for different installation environments.

Key Features

• Durable welded steel construction
• High-density hexagonal ventilation
• Front door opens up to 180°

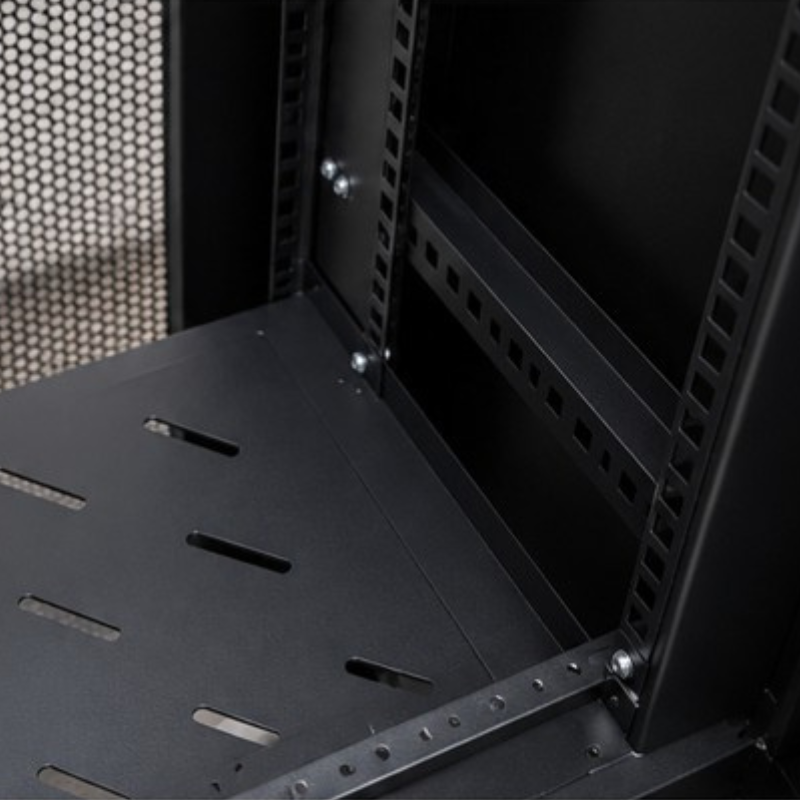

• Adjustable S-shaped mounting profiles

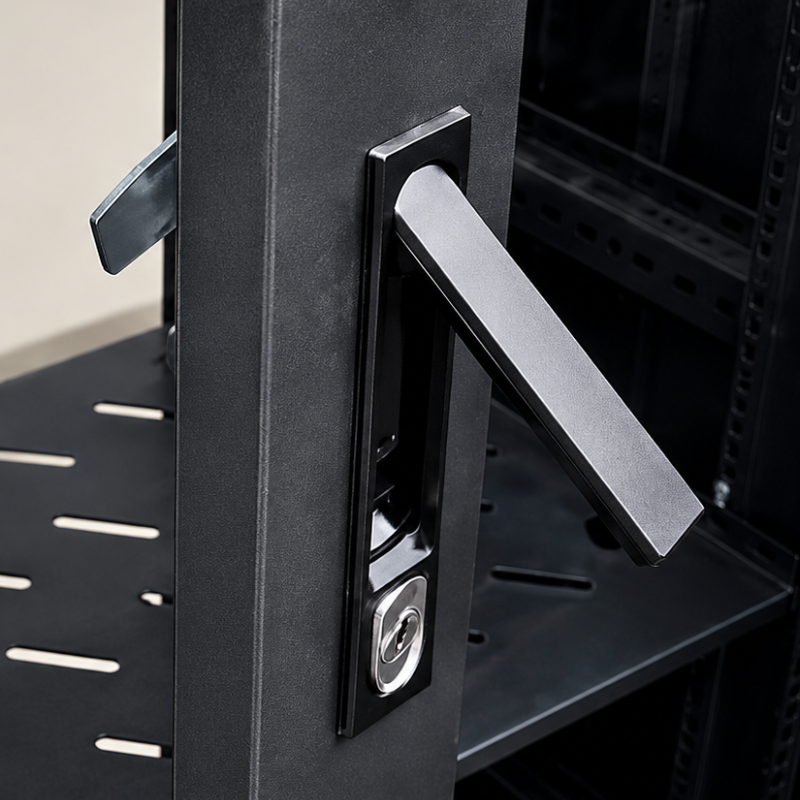

• Lockable front door and removable side panels
• Top and bottom cable entry
• Adjustable feet and castors

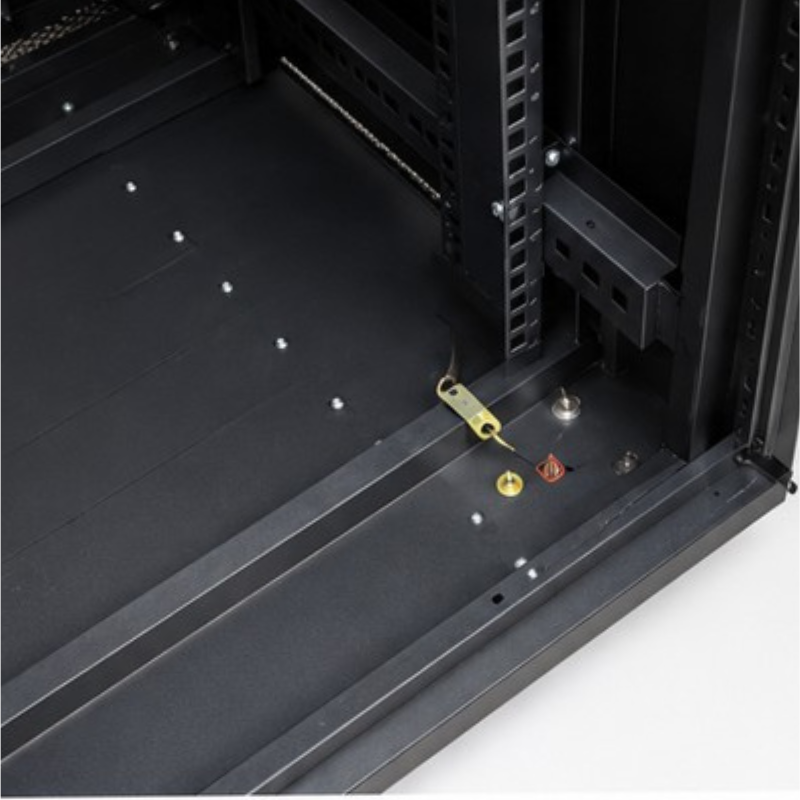

• Includes cabinet baying and earthing kits
• Flat-packed for efficient shipping and storage
• Compatible with a wide range of optional accessories

• Material: SPCC quality cold-rolled stee
• Colour: Black
• Thickness: Mounting profile – 2.0 mm; other components – 1.2 mm
• Static Loading Capacity: 800 kg (on adjustable feet)
• Degree of Protection: IP20
• Surface Finish: Degreasing, pickling, phosphating and powder coating



This cabinet is designed to comply with the following applicable rack and equipment standards:

• ANSI/EIA RS-310-D

• EC 297-2

• DIN 41491 – Part 1

• DIN 41491 – Part 7

• ETSI Standards


These standards relate to the dimensional and mounting requirements for racks, cabinets, panels and associated equipment.
