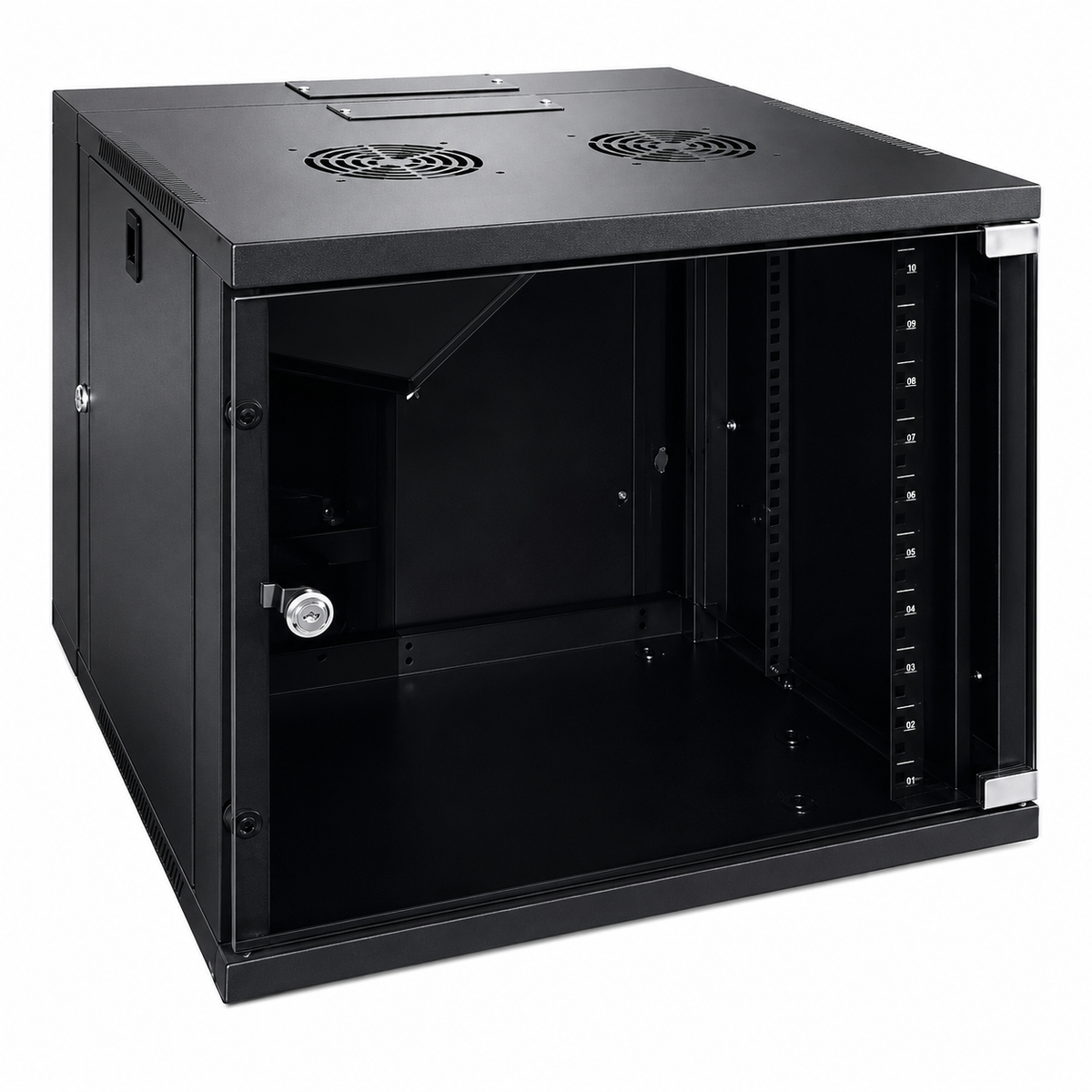

DS-C Double Section Wall-Mounted Network Cabinet – 19-Inch Server Rack Enclosure

The DS-C Double Section Wall-Mounted Network Cabinet – 19-Inch Server Rack Enclosure is a durable and space-saving wall-mounted network cabinet designed to securely house and organize 19-inch standard network, server, telecommunications, and rack-mounted equipment. Its double-section design provides convenient access to equipment while helping optimize wall and floor space in professional IT and networking environments.

Constructed with a sturdy steel frame and precision-welded structure, the cabinet provides reliable support and protection for installed equipment. The tempered glass front door offers clear visibility of rack-mounted equipment and opens more than 180 degrees, providing convenient access during installation, servicing, and maintenance.

The cabinet features bolted side panels that can be removed for easier equipment installation and maintenance. Cable-entry openings are provided on both the top cover and bottom panel, with cover plates to help maintain organized cable routing and a clean cabinet appearance.

A fan cutout on the top cover allows an optional cooling fan to be installed for improved airflow and heat management. The welded tempered glass front-door structure provides additional durability and stability for regular access to the cabinet.

The DS-C is suitable for network switches, patch panels, routers, telecommunications equipment, servers, and other 19-inch rack-mount devices used in offices, IT rooms, commercial facilities, and other professional networking applications.

Key Features

• 19-Inch Standard Rack Compatibility – Designed to accommodate standard 19-inch network, server, telecommunications, and rack-mounted equipment.
• Double-Section Wall-Mounted Design – Space-efficient double-section construction provides convenient access for equipment installation, cable management, servicing, and maintenance.
• Durable Steel Construction – Sturdy steel frame with precision-welded construction provides a stable and reliable enclosure for installed equipment.
• Tempered Glass Front Door – Tempered glass door provides clear visibility of installed equipment and opens over 180 degrees for convenient access.
• Bolted Side Panels – Removable bolted side panels allow easier access for equipment installation, servicing, and maintenance.
• Top & Bottom Cable Entry – Cable-entry openings on the top cover and bottom panel support flexible and organized cable routing.
• Cable Entry Cover Plates – Cover plates help keep cable-entry openings protected and maintain a clean, organized cabinet setup.
• Top Fan Cutout – Pre-designed fan cutout on the top cover allows optional fan installation to support improved ventilation and cooling.
• Welded Front Door Structure – Complete welded tempered glass front-door construction provides enhanced durability and structural stability.
• Easy Installation & Maintenance – Accessible cabinet components make equipment installation, upgrades, cable routing, and maintenance more convenient.
• Supplied Flat-Packed – Supplied flat-packed for convenient shipping, handling, storage, and on-site assembly.

• Material: SPCC quality cold rolled steel
• Thickness: Mounting profile: 1.2 mm; other: 1.0 mm
• Static Loading Capacity: 30 kg
• Degree of Protection: IP20
• Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated

Designed to comply with the following applicable rack and equipment standards:

• ANSI/EIA RS-310-D
• IEC 297-2
• DIN 41497 Part 1
• DIN 41494 Part 7
• GB/T 3047.2-92


These standards specify dimensional, mounting, and mechanical requirements for 19-inch racks, cabinets, mounting rails, panels, and associated equipment.
