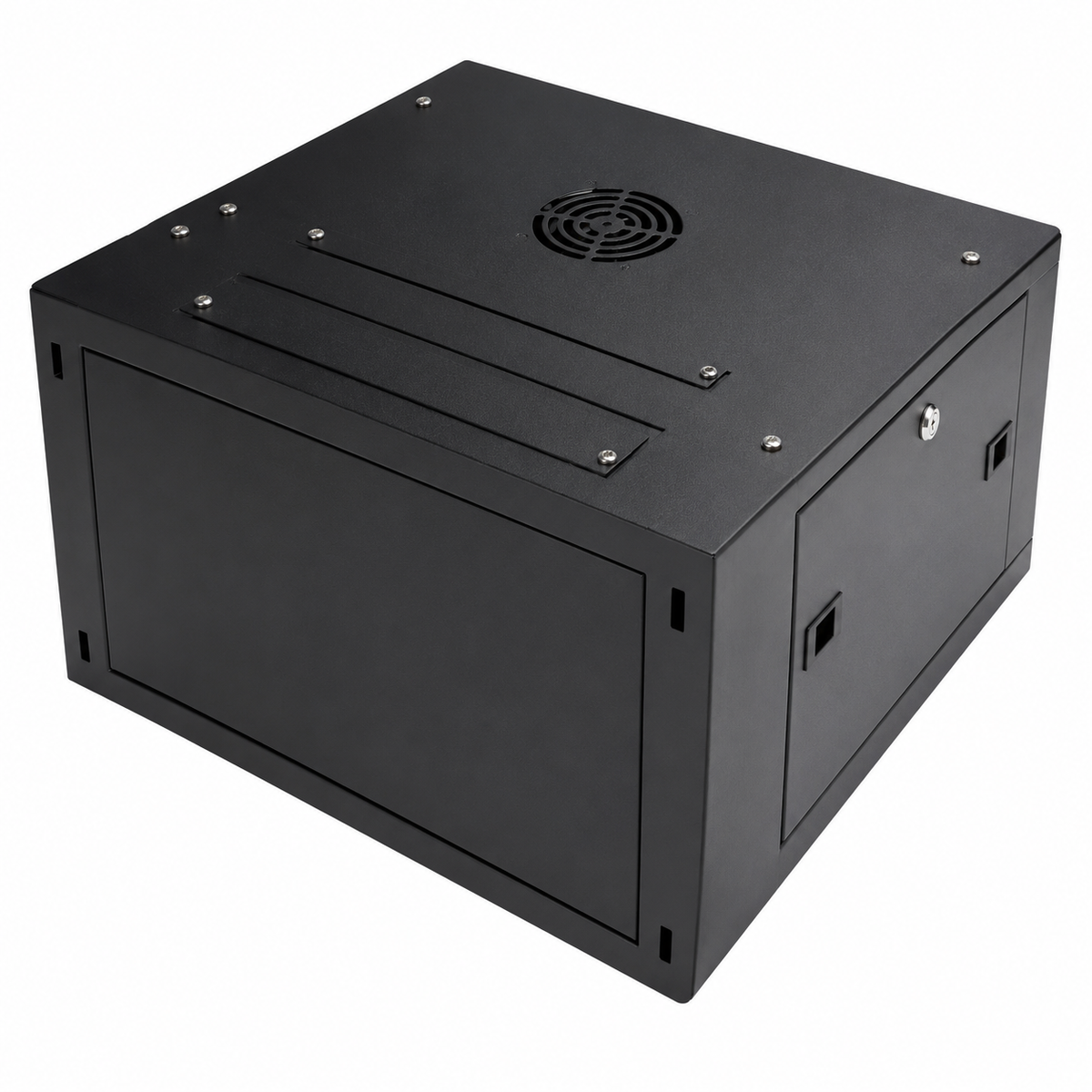

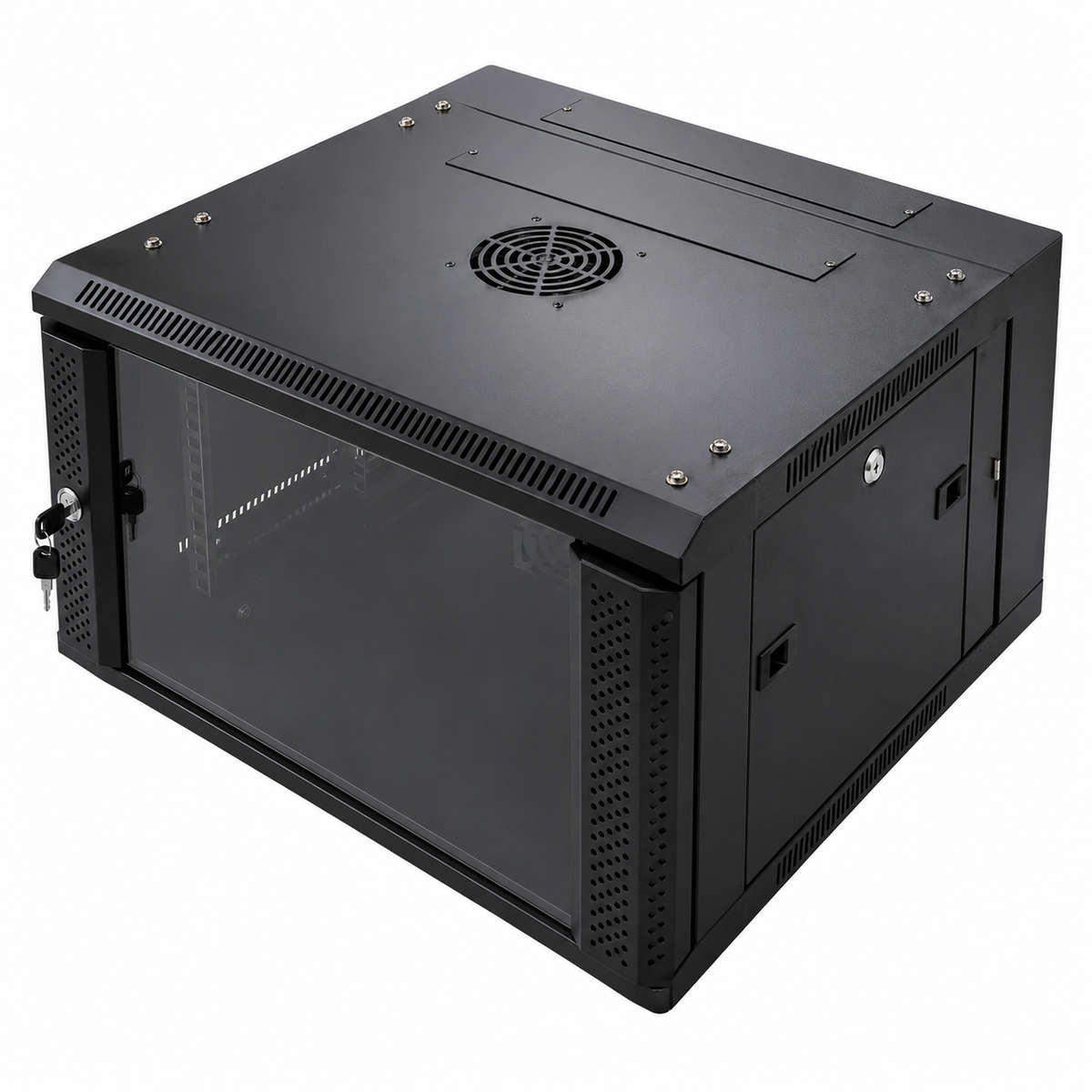

DS-B Double Section Wall-Mounted Network Cabinet – 19-Inch Server Rack Enclosure

The DS-B Double Section Wall-Mounted Network Cabinet – 19-Inch Server Rack Enclosure is a durable and space-efficient wall-mounted network cabinet designed to securely house and organize 19-inch standard network, server, and telecommunications equipment. Its double-section design provides convenient access for equipment installation, cable management, maintenance, and servicing while helping maximize available space.

Built with a sturdy steel frame and precision-welded construction, the cabinet provides a stable enclosure for professional networking and rack-mounted equipment. The tempered glass front door offers clear visibility of installed equipment while providing convenient access with a door opening of over 180 degrees.

The cabinet features bolted side panels for easy installation and maintenance, along with cable entry points on both the top and bottom panels. Covered cable-entry openings help support organized and protected cable routing. A dedicated fan cutout on the top cover provides an option for installing a cooling fan to improve airflow and ventilation.

Designed for practical installation and reliable equipment protection, the DS-B is suitable for networking equipment, telecommunications devices, servers, switches, patch panels, and other 19-inch rack-mount equipment in offices, commercial spaces, IT rooms, and other professional environments.

Key Features

• 19-Inch Standard Rack Compatibility – Designed to accommodate standard 19-inch network, server, telecommunications, and rack-mounted equipment.
• Double-Section Wall-Mounted Design – Space-efficient double-section construction provides convenient access for equipment installation, cable management, and maintenance.
• Durable Steel Construction – Sturdy steel frame with precision-welded construction provides a stable and reliable enclosure for rack-mounted equipment.
• Tempered Glass Front Door – Clear tempered glass front door allows easy visibility of installed equipment and opens over 180 degrees for convenient access.

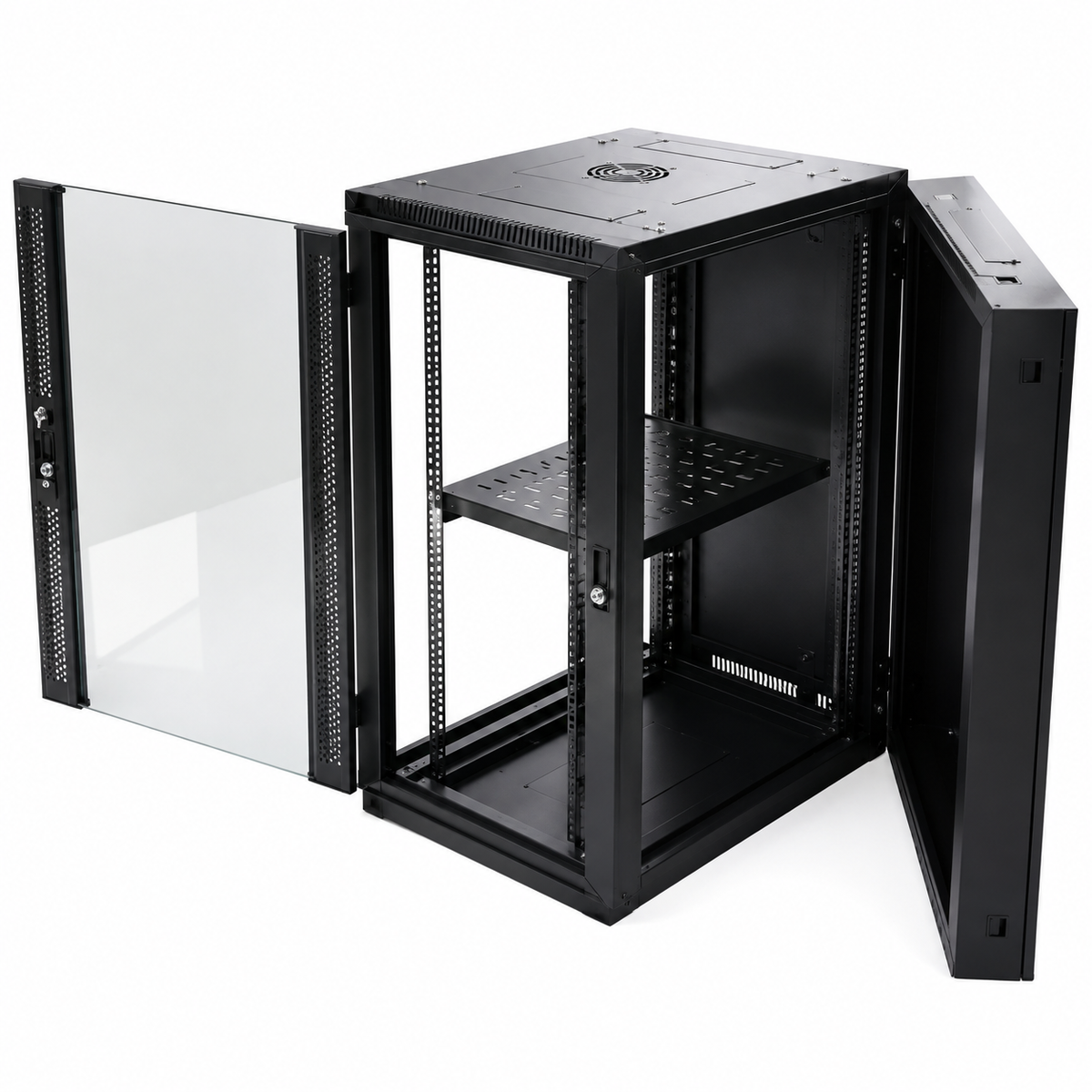

• Bolted Side Panels – Removable bolted side panels provide easier access for equipment installation, servicing, and maintenance.
• Top & Bottom Cable Entry – Cable-entry openings on both the top and bottom panels support organized and flexible cable routing.
• Cable Entry Cover Plates – Cover plates help protect and organize cable-entry openings when they are not in use.
• Top Fan Cutout – Pre-designed fan cutout on the top cover allows optional fan installation for improved cabinet ventilation and cooling.

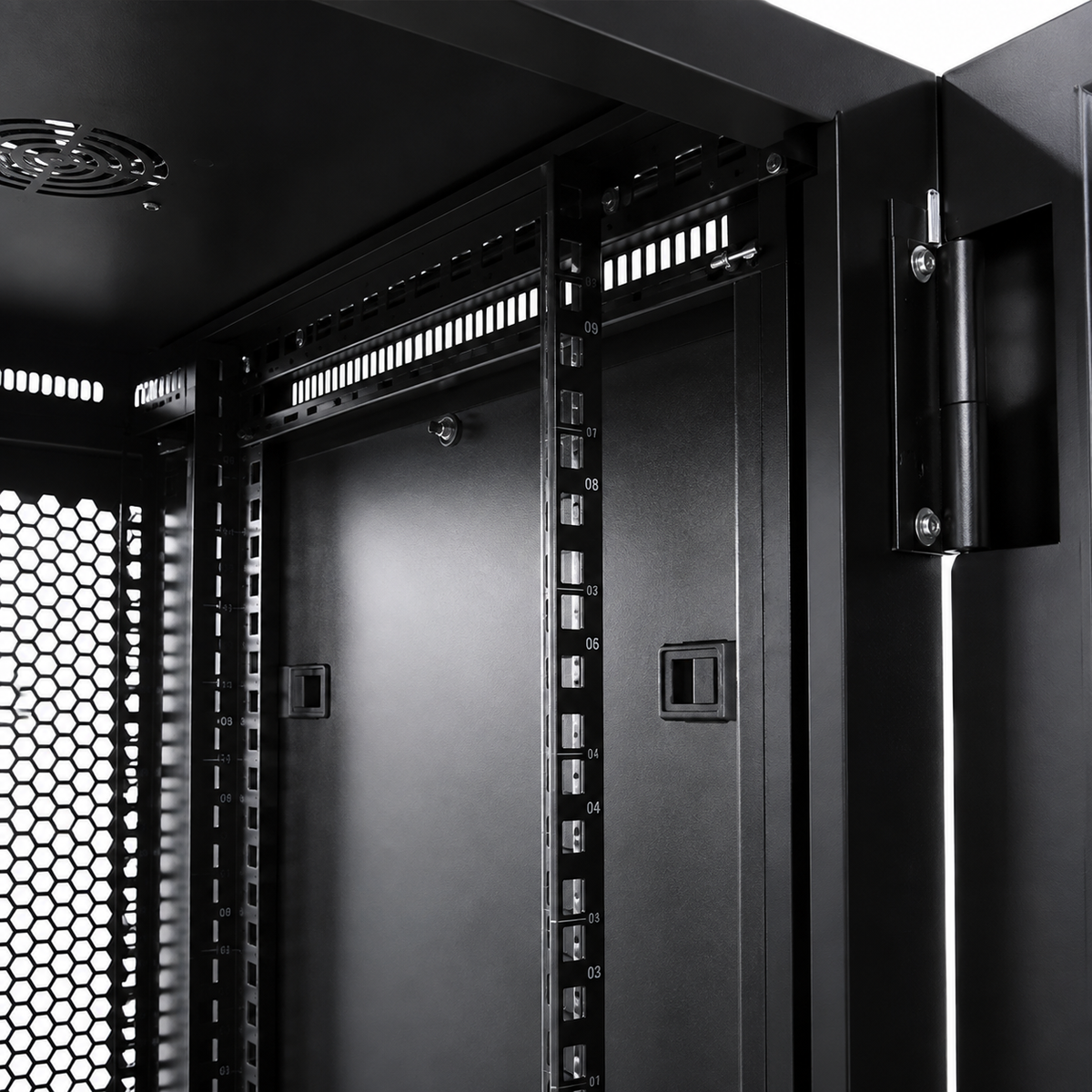

• Welded Front Door Structure – Robust welded front-door construction enhances overall durability and structural stability.
• Easy Installation & Maintenance – Practical cabinet construction provides convenient access for installation, upgrades, cable management, and ongoing maintenance.
• Supplied Flat-Packed – Supplied flat-packed for convenient shipping, handling, storage, and on-site assembly.

• Material: SPCC quality cold rolled steel
• Thickness: Mounting profile: 1.2 mm; other: 1.0 mm
• Static Loading Capacity: 30 kg
• Degree of Protection: IP20
• Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated

Designed to comply with the following applicable rack and equipment standards:

• ANSI/EIA RS-310-D
• IEC 297-2
• DIN 41497 Part 1
• DIN 41494 Part 7
• GB/T 3047.2-92


These standards specify dimensional, mounting, and mechanical requirements for 19-inch racks, cabinets, mounting rails, panels, and associated equipment.
