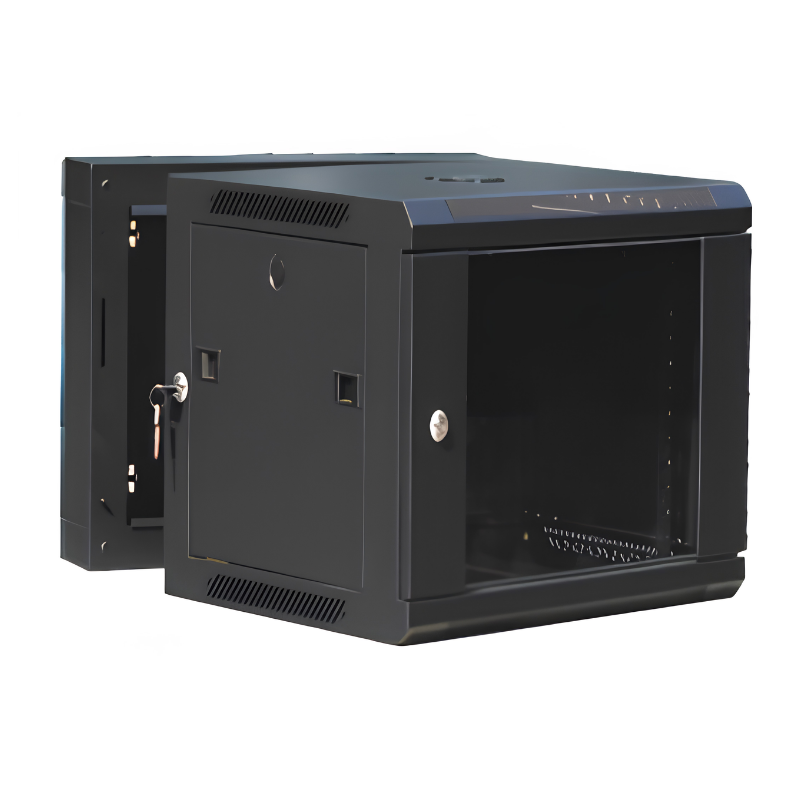

DS-A Double Section Wall-Mounted Network Cabinet – 19-Inch Server Rack Enclosure

The DS-A Double Section Wall-Mounted Network Cabinet – 19-Inch Server Rack Enclosure is designed to securely house and organise 19-inch standard network and server equipment in a compact wall-mounted configuration. Its welded frame provides a stable and durable structure, while the double-section design allows convenient access for equipment installation, cable management, and maintenance.

The cabinet features a tempered glass front door that opens more than 180°, providing clear visibility and easy access to installed equipment. The removable side panels further simplify installation and maintenance, while cable entry points on the top and bottom panels help keep network cabling organised.

An adjustable L-shaped mounting profile provides flexible equipment positioning along the mounting rail. The top panel includes a fan cutout for optional fan installation to support ventilation. The rear section can swing open more than 90°, providing additional access to the rear of installed equipment.

The DS-A is a practical solution for networking, telecommunications, IT, CCTV, and server equipment installations where space-efficient wall-mounted equipment storage is required. Various accessories are available as optional additions.

Key Features

• Double-Section Design – Provides convenient access for equipment installation, cabling, and maintenance.
• 19-Inch Standard Compatibility – Designed to accommodate standard 19-inch rack-mounted network and server equipment.
• Durable Welded Frame – Provides a stable and robust cabinet structure for reliable equipment protection.
• Tempered Glass Front Door – Offers clear visibility of equipment and opens more than 180° for convenient access.
• Removable Side Panels – Allows easier equipment installation, access, and maintenance; optional locks are available.
• Adjustable L-Shaped Mounting Profile – Mounting profiles can be adjusted along the mounting rail for flexible equipment positioning.
• Supplied Flat-Packed – Supplied flat-packed for convenient shipping, handling, storage, and on-site assembly.

• Material: SPCC quality cold rolled steel
• Thickness: Mounting profile: 1.2 mm; other: 1.0 mm
• Static Loading Capacity: 30 kg
• Degree of Protection: IP20
• Surface Finish: Degreasing, Pickling, Phosphating, Powder Coated

Designed to comply with the following applicable rack and equipment standards:

• ANSI/EIA RS-310-D
• IEC 297-2
• DIN 41497 Part 1
• DIN 41494 Part 7
• GB/T 3047.2-92


These standards specify dimensional, mounting, and mechanical requirements for 19-inch racks, cabinets, mounting rails, panels, and associated equipment.
