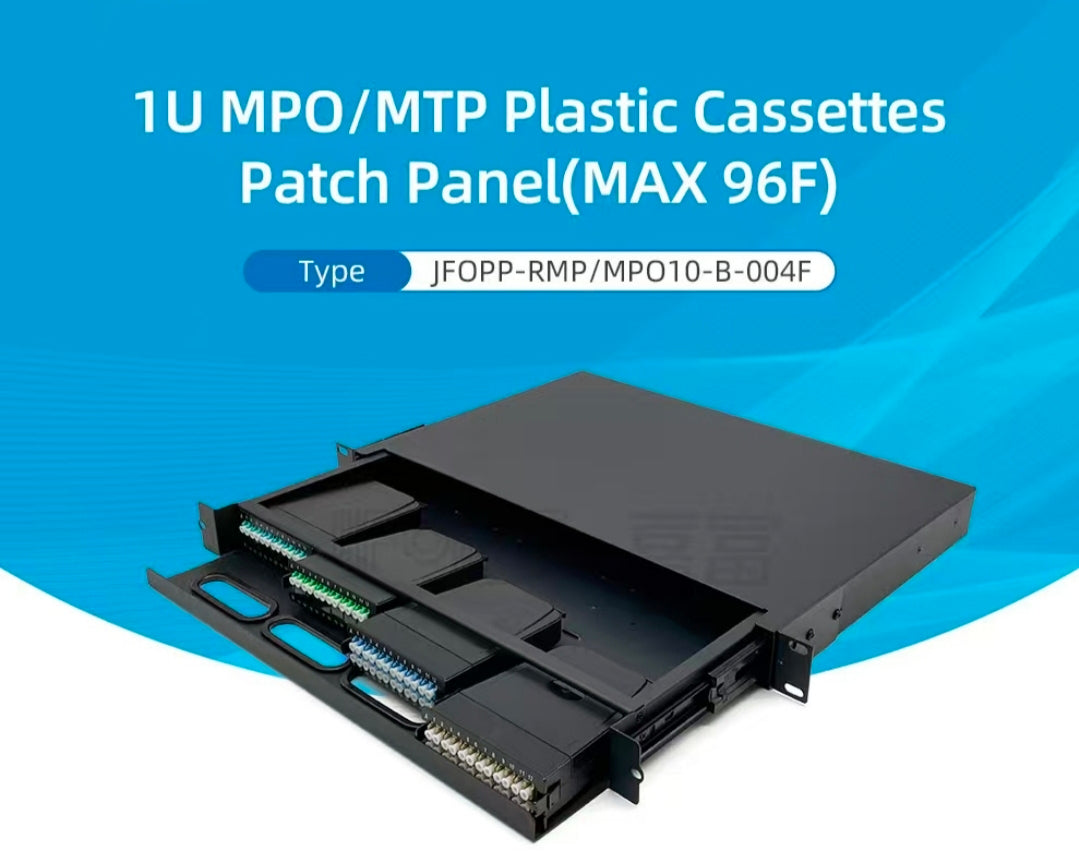

FIBAsource 1U 96 Core MPO/MTP Fibre Patch Panel — LC OM4 Duplex, Sliding Drawer, Modular Cassette Design

The FIBAsource 96 Core MPO/MTP Patch Panel delivers high-density fibre connectivity in a single 1U rack space — engineered for data centres, SAN environments, backbone networks, and high-density structured cabling installations.

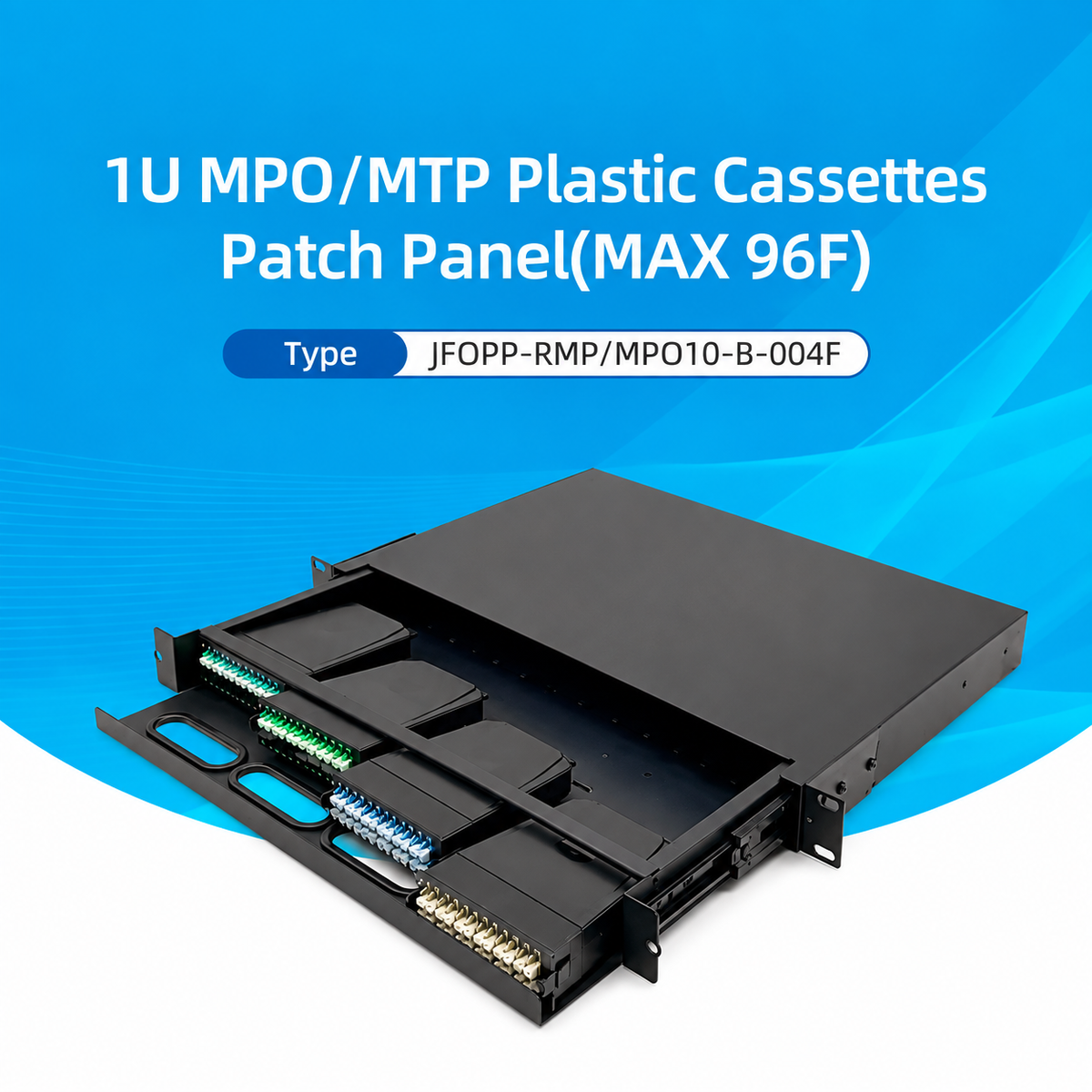

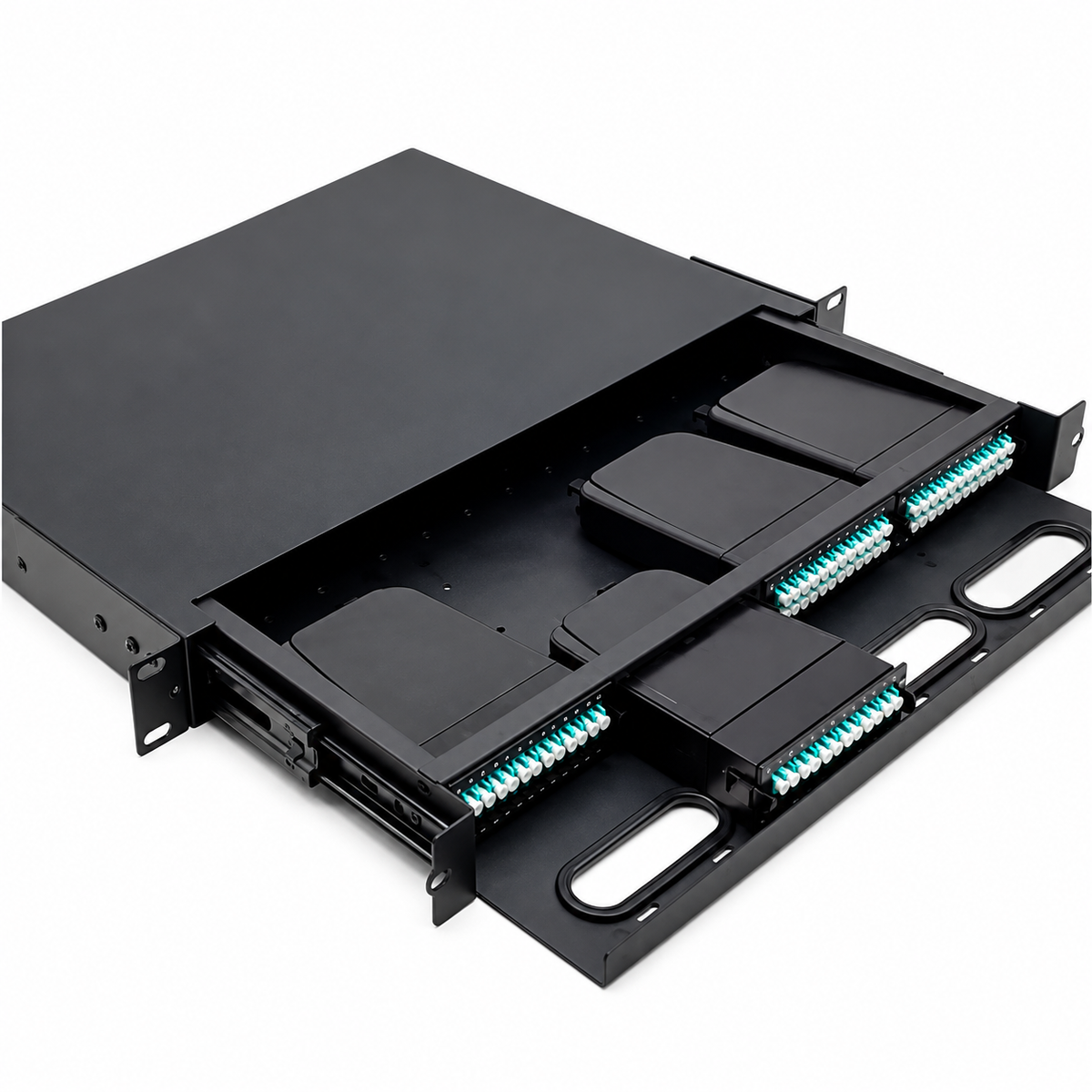

Built on a modular cassette system, the chassis accepts up to 4 interchangeable MPO cassettes (12 or 24 core), allowing fast wiring changes without disturbing existing infrastructure. The sliding drawer design means the entire tray extracts fully from the chassis for clean, accessible jumper docking and cable management.

Constructed from cold-rolled steel with an electrostatic powder coat finish, this panel is built to withstand the demands of live data centre environments.

COMPATIBILITY
• LC Duplex OM4 (aqua connectors)
• MPO/MTP backbone connectivity

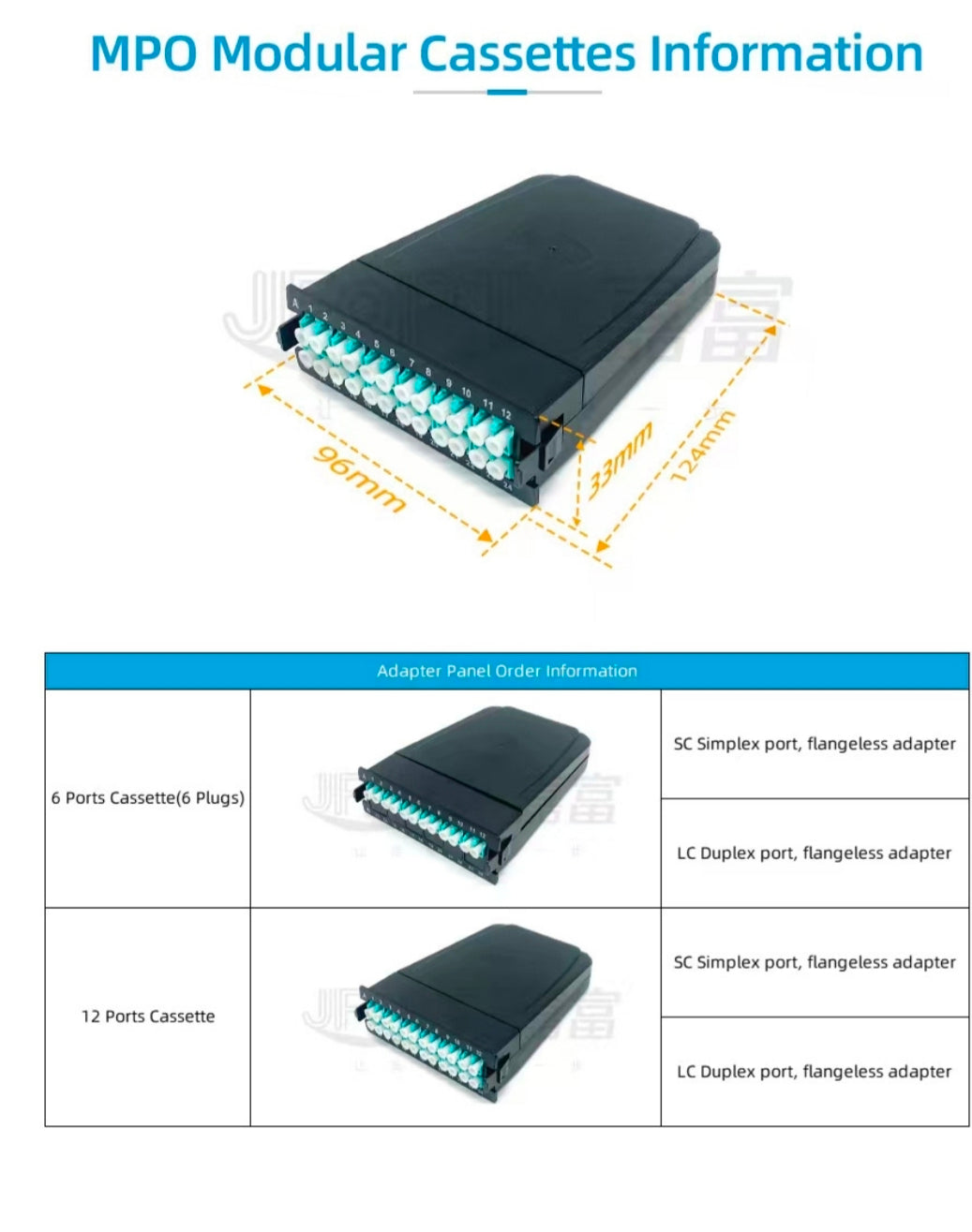

• Compatible with 12-core and 24-core MPO cassettes (6-port SC simplex or 12-port LC duplex configurations)

KEY FEATURES
• 1U rack mount — maximum 96 fibre cores in minimal rack space

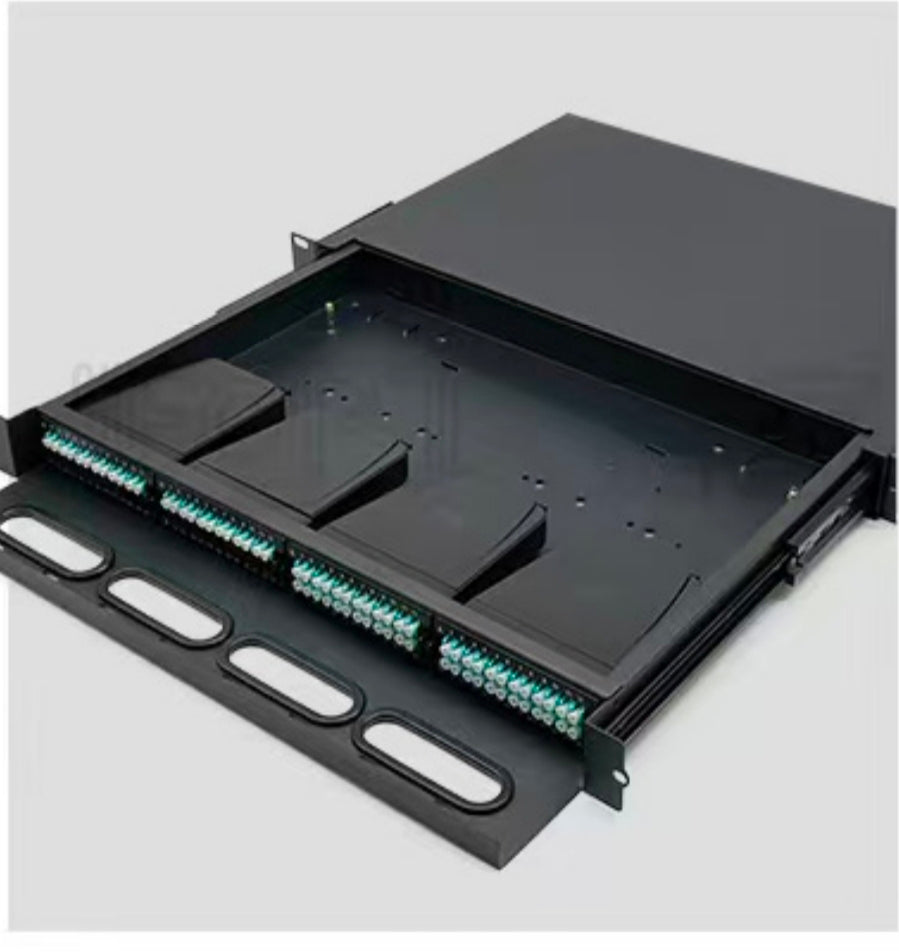

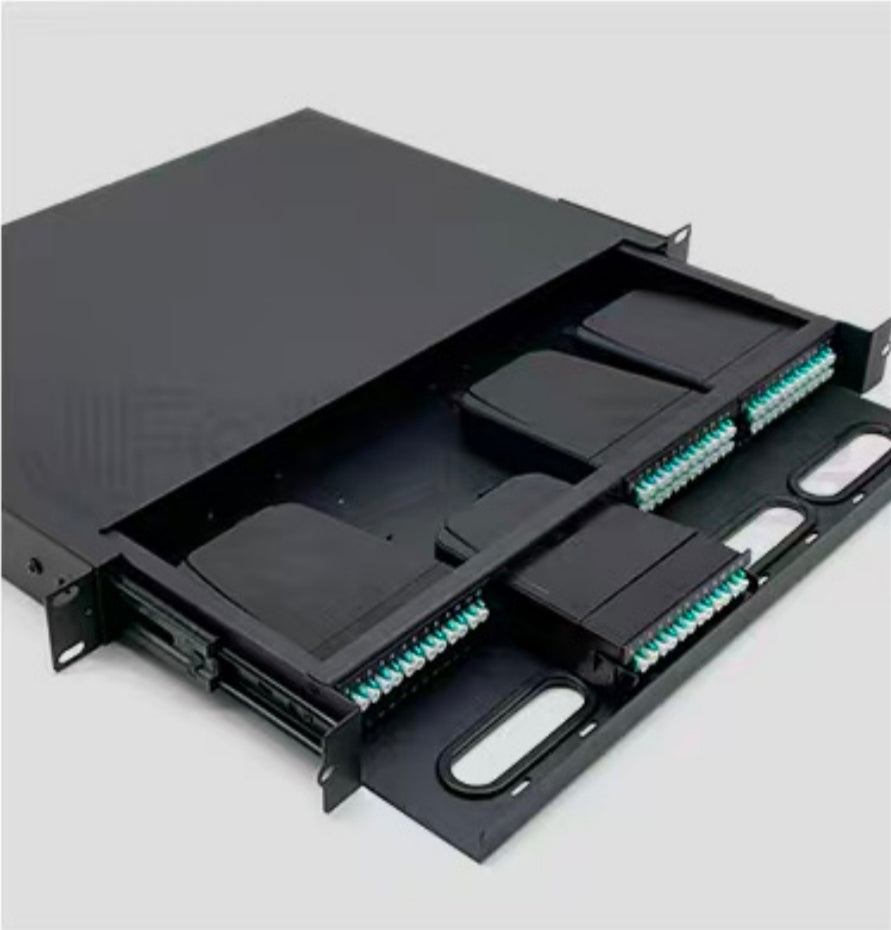

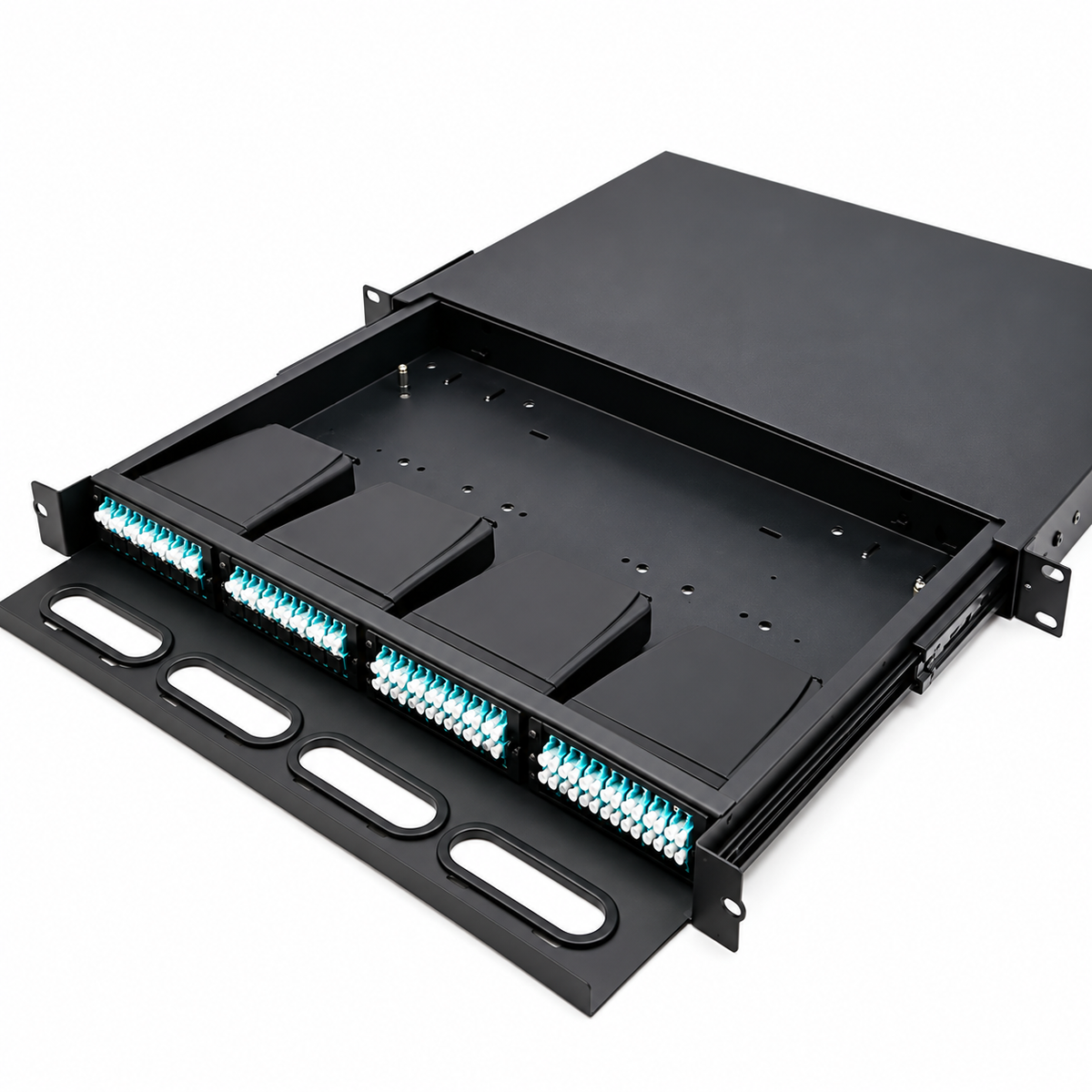

• Fully sliding drawer — complete tray extraction for easy access
• Modular pre-terminated cassettes — plug-and-play replacement, no splicing required

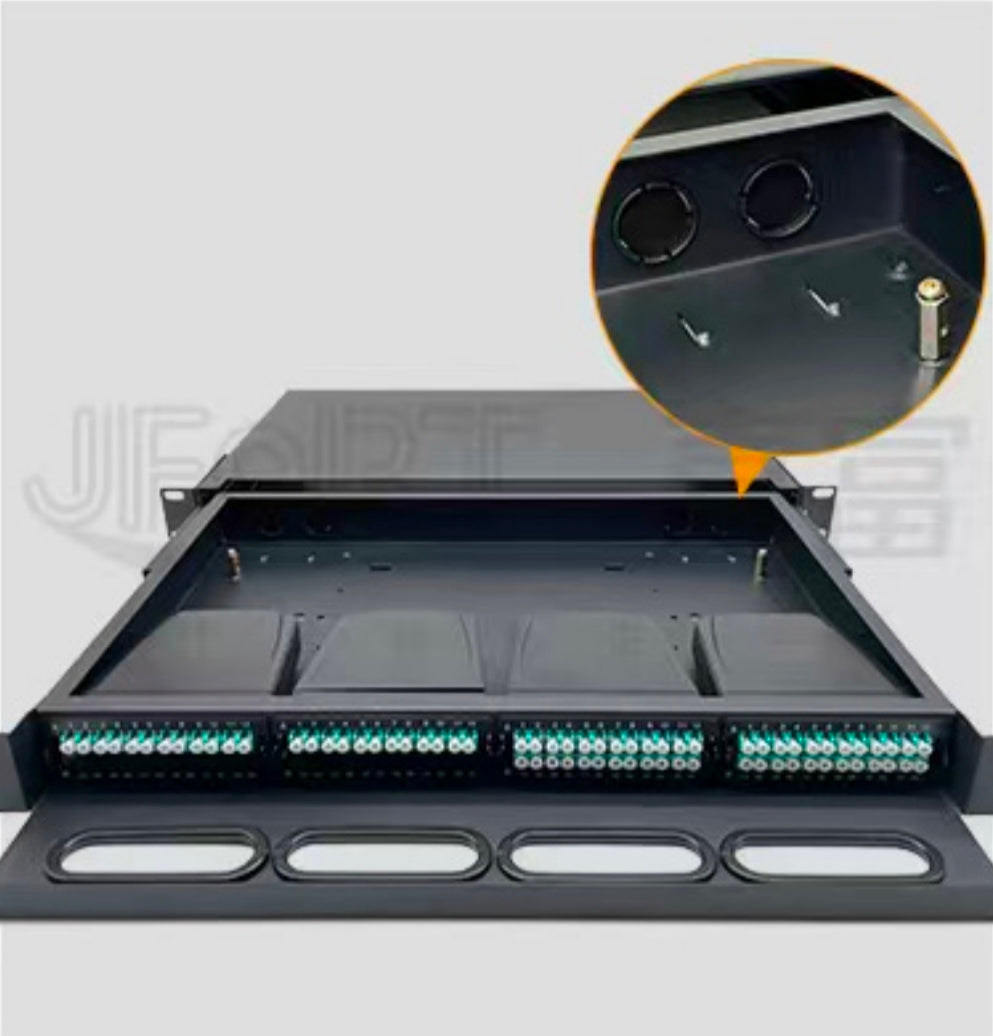

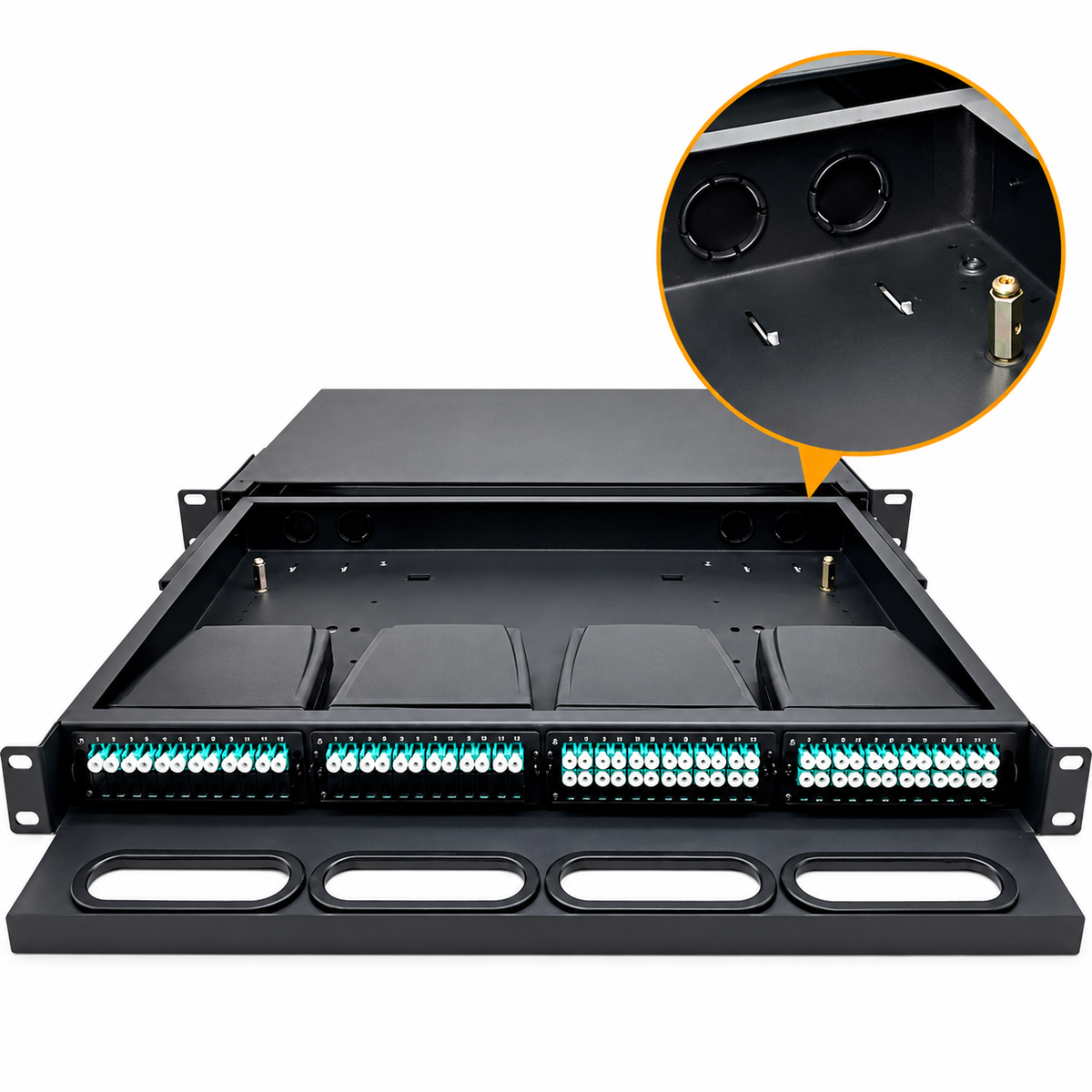

• Multiple rear cable inlets with integrated winding and fixing points
• Front cable management tray included
• Cold-rolled steel chassis — impact and compression resistant
• Electrostatic sprayed finish — wear and corrosion resistant

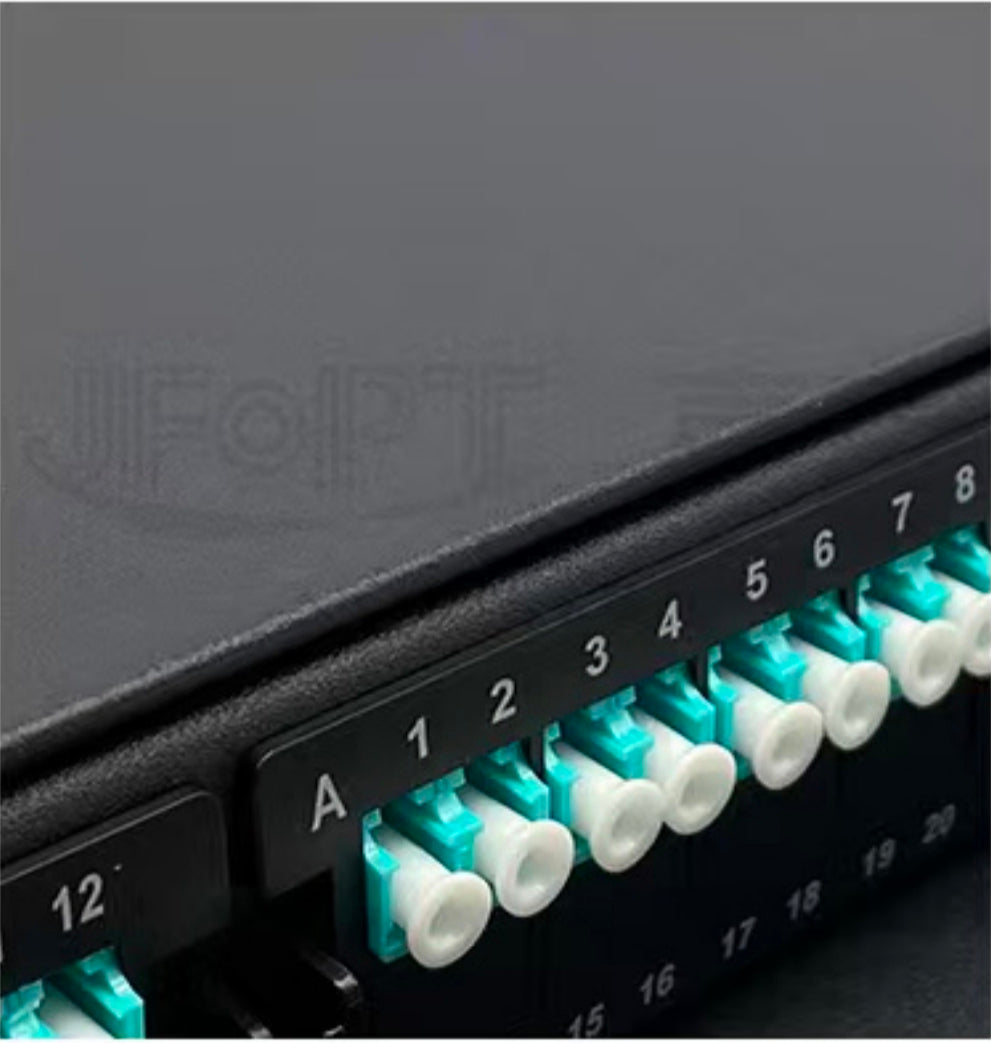

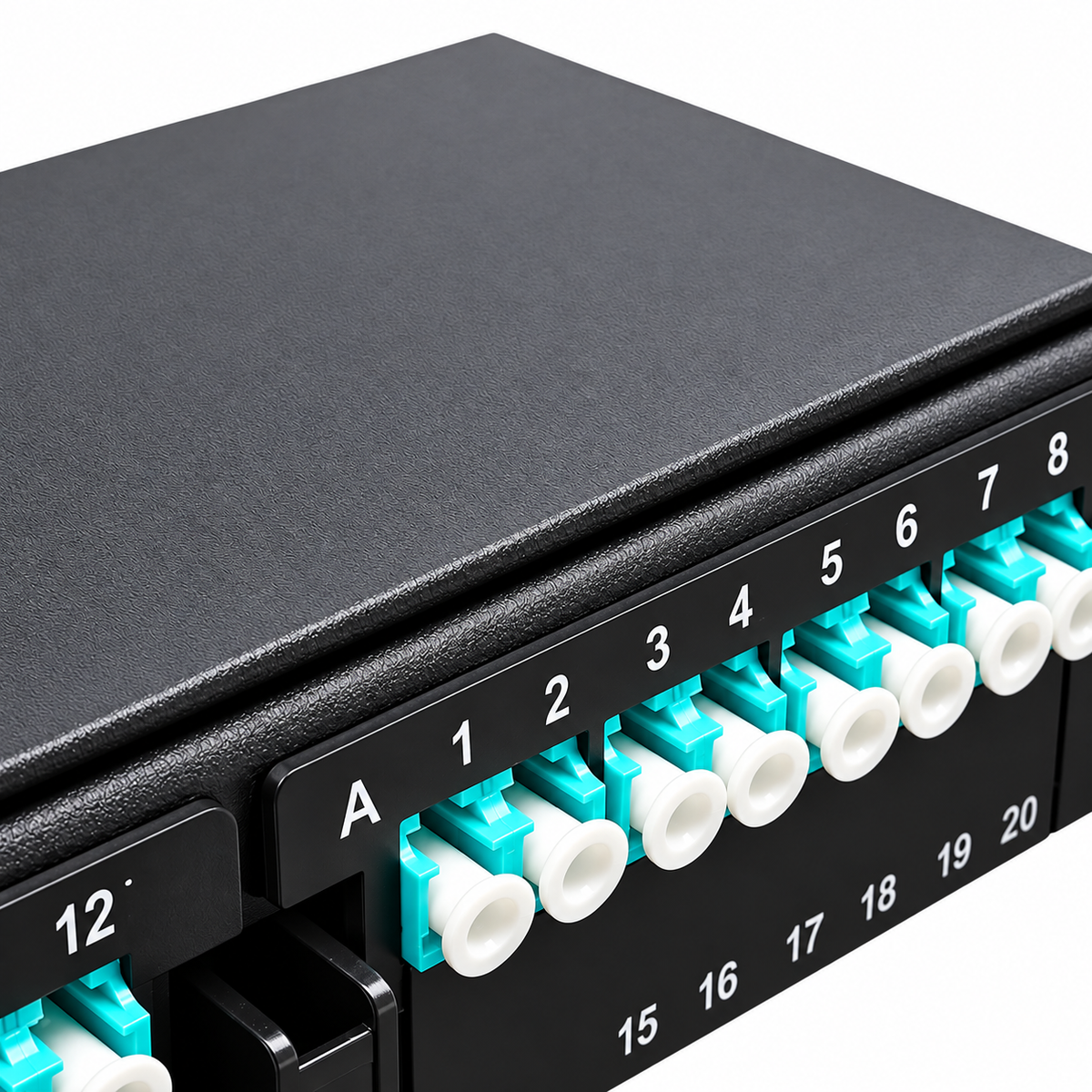

• Numbered port labelling on cassette faces for accurate documentation

STANDARDS & CERTIFICATIONS
CE certified | RoHS compliant | FCC compliant | ISO 9001:2015 | IEC 61754-5

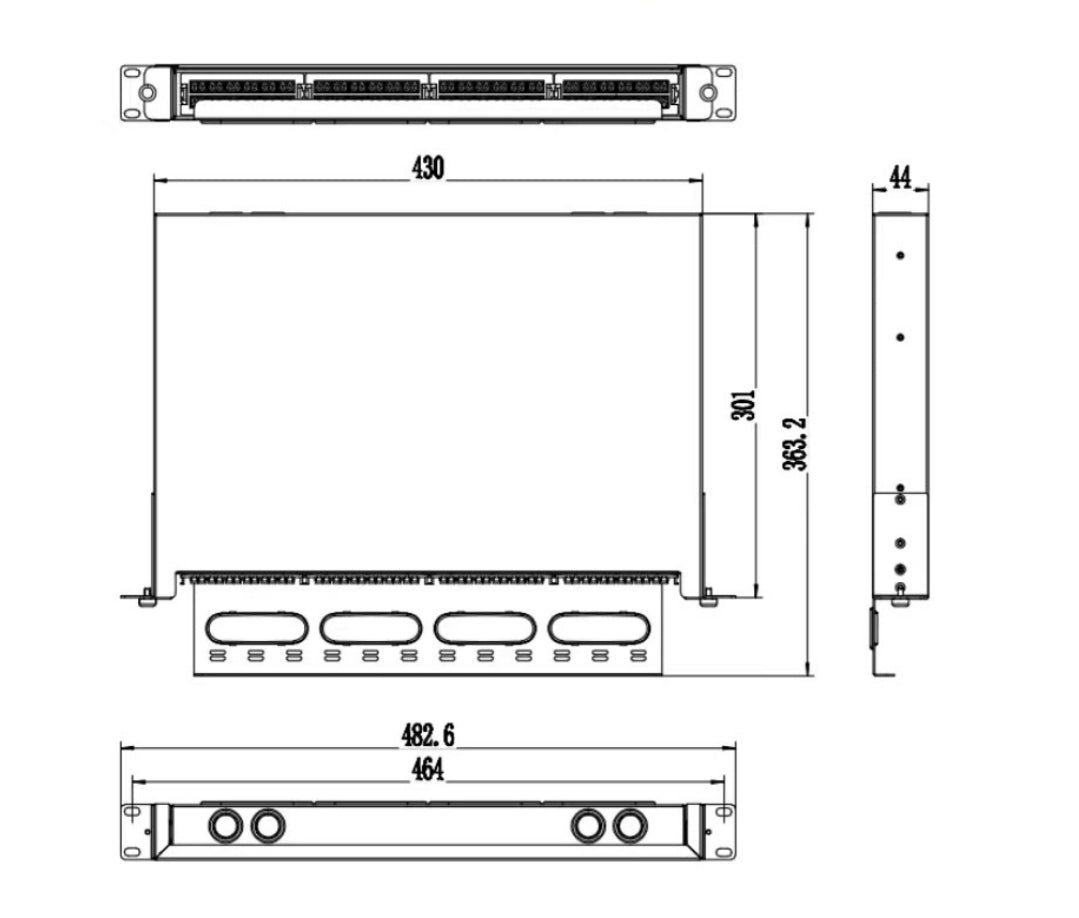

DIMENSIONS

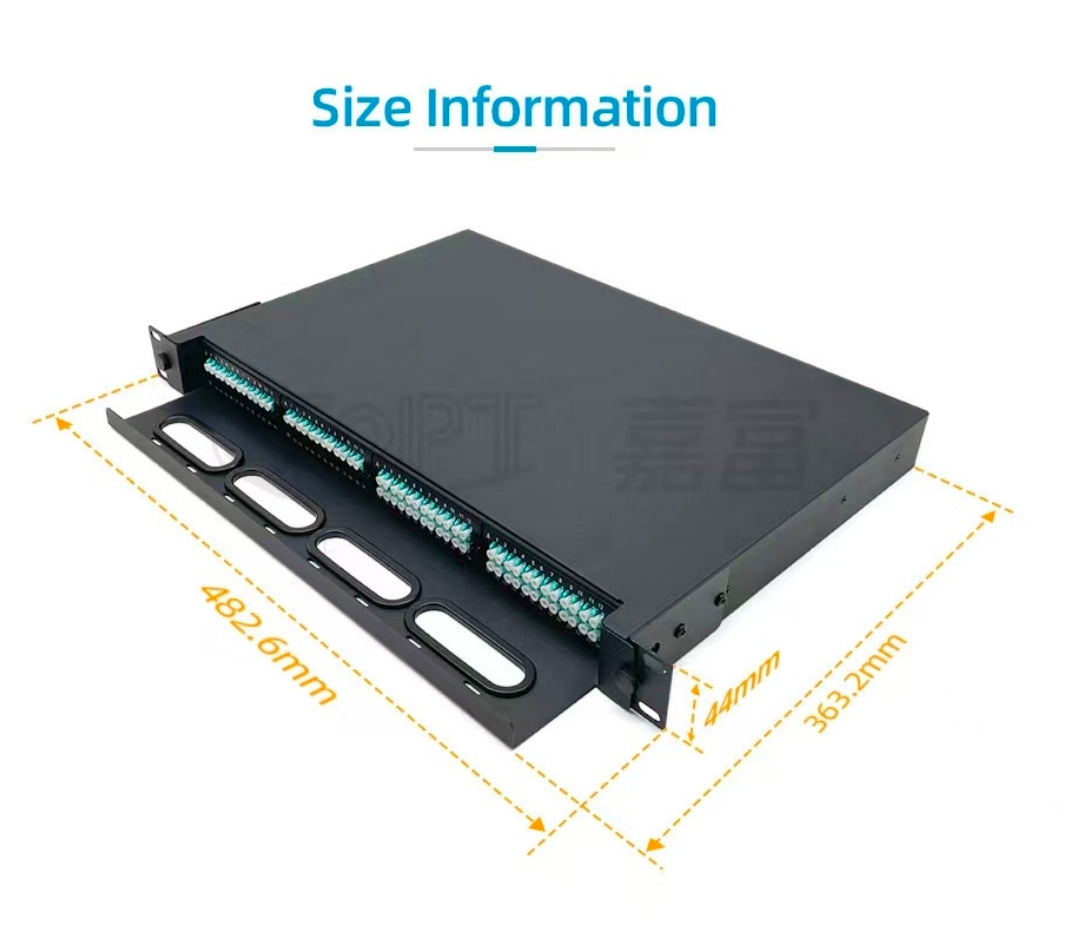

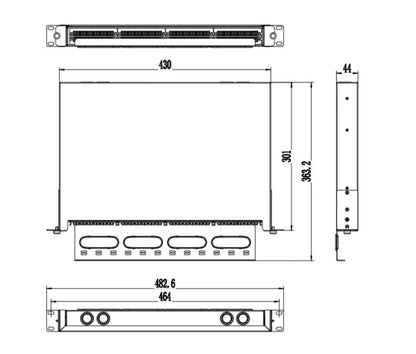

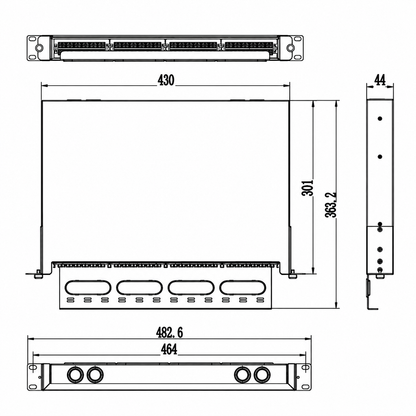

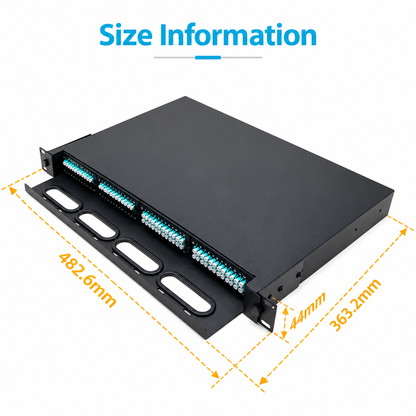

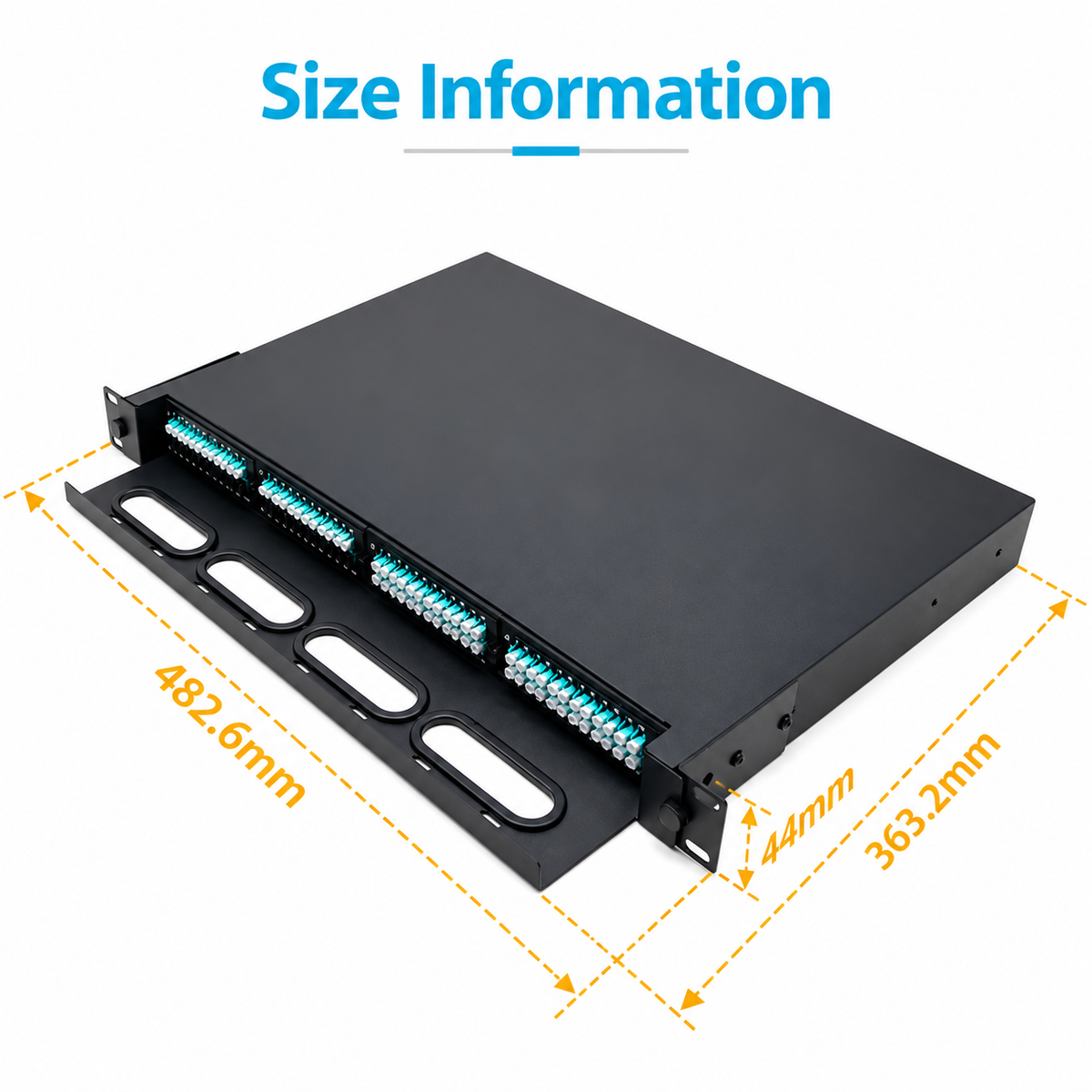

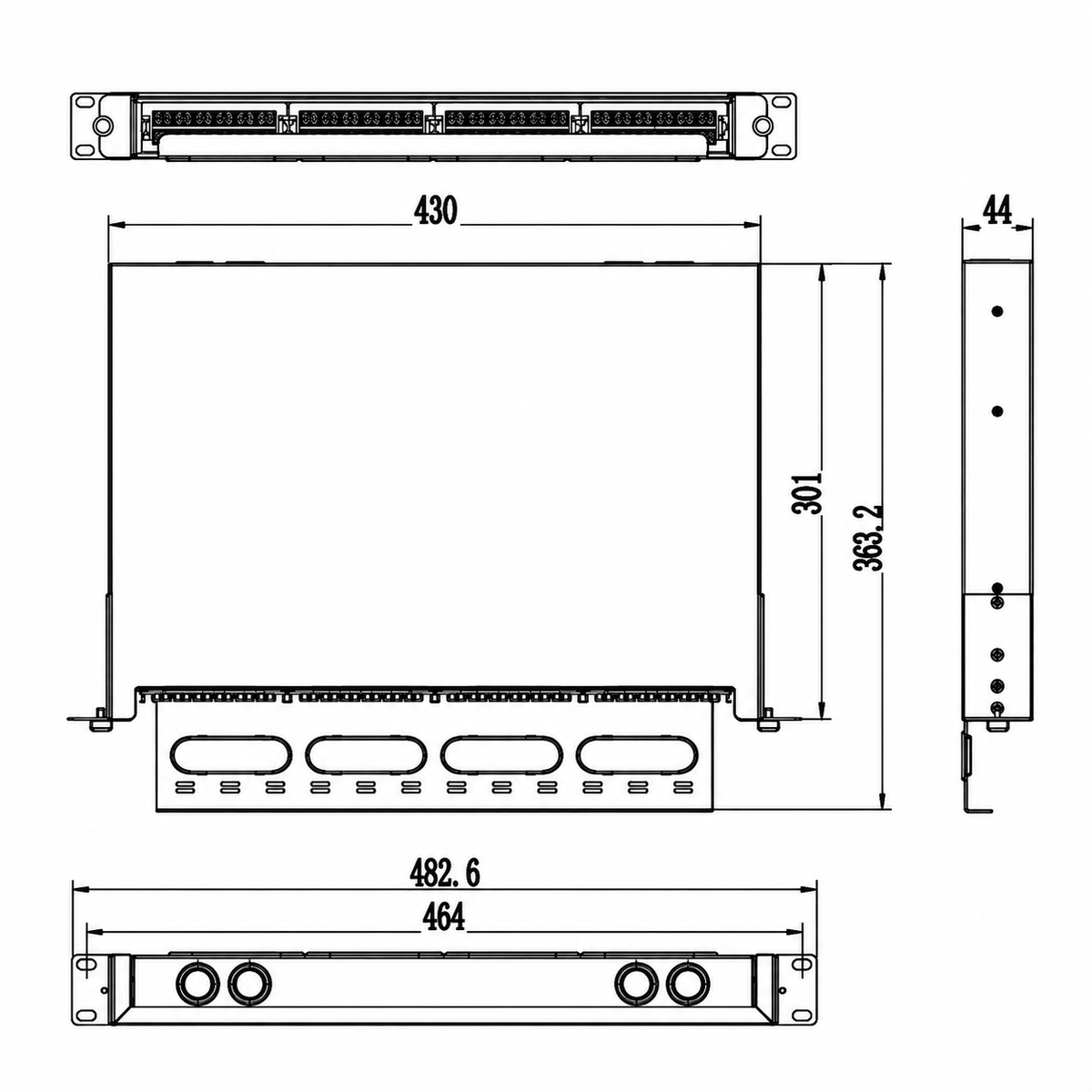

Chassis: 482.6 x 363.2 x 44mm (W x D x H)

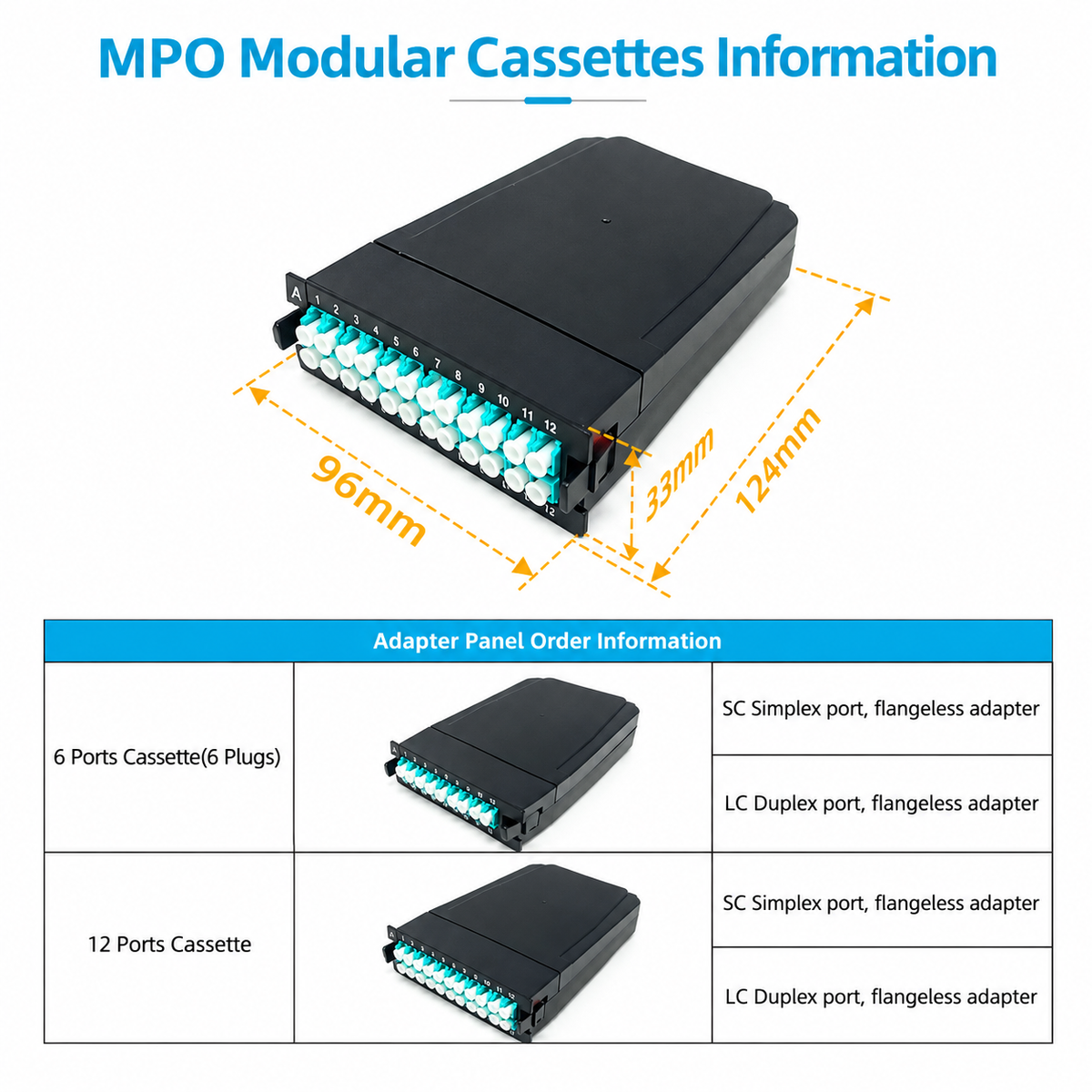

Single cassette: 96 x 124 x 33mm

IN THE BOX
• 1x 1U MPO/MTP sliding chassis
• Front cable management tray
• Cable ties (3x150mm) x6
• Screw and nut x4
• Velcro tape (10x335mm) x1
• Waterproof cable glands x2

Whether you're deploying new high-density fibre infrastructure or upgrading an existing installation, the FIBAsource 96 Core MPO Panel is engineered to perform. Need a quote for multiple units or a full rack build? Contact our B2B team at fibasource.com.
