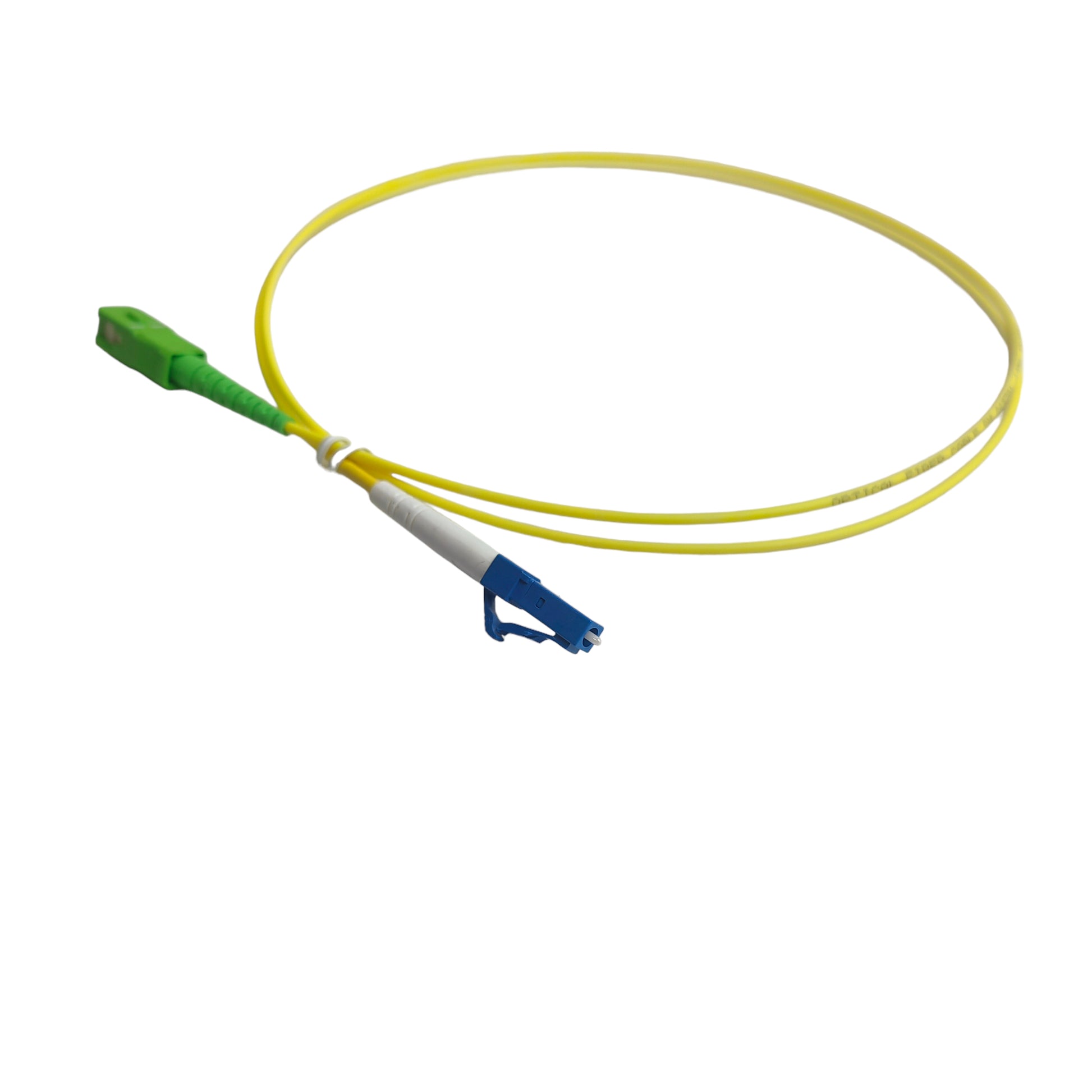

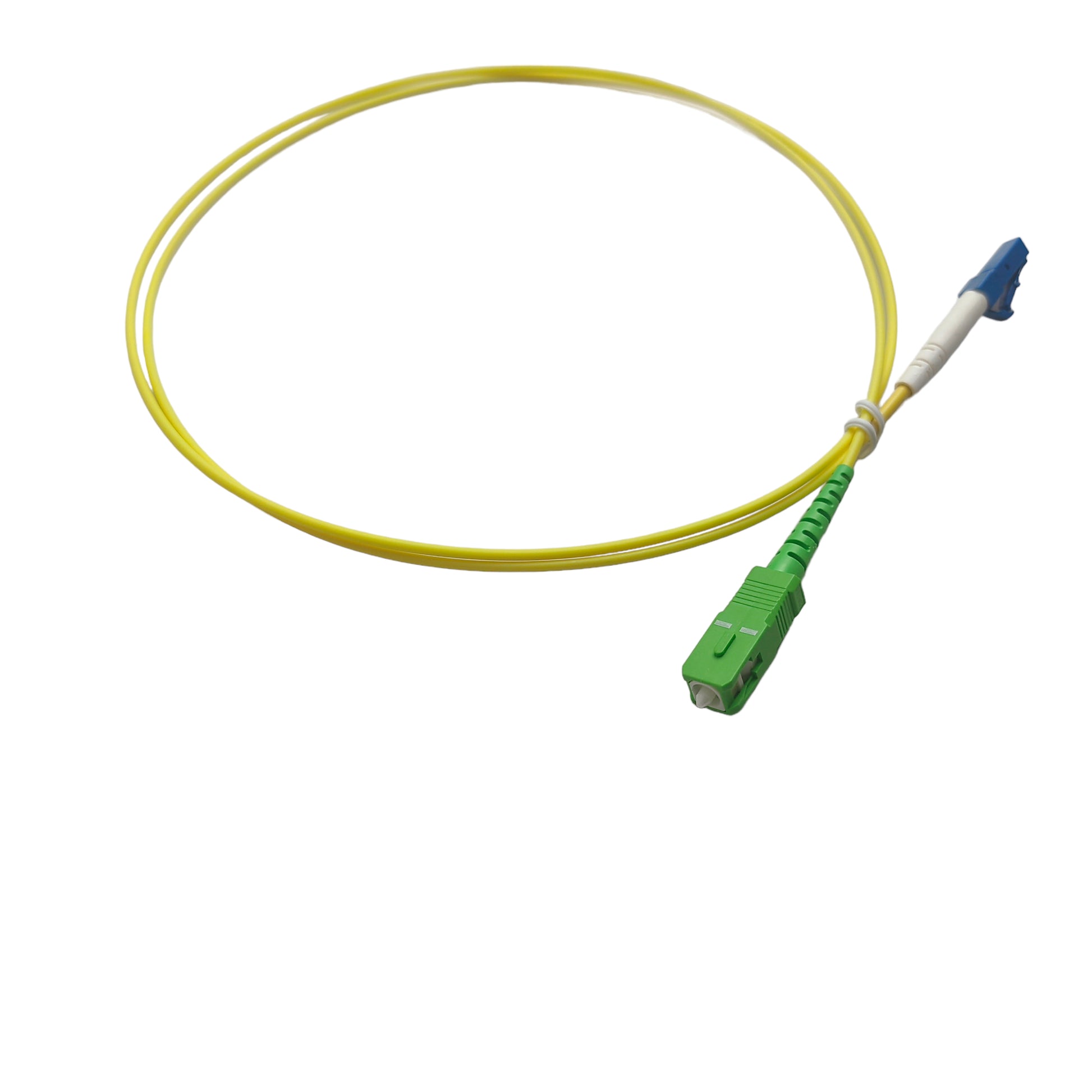

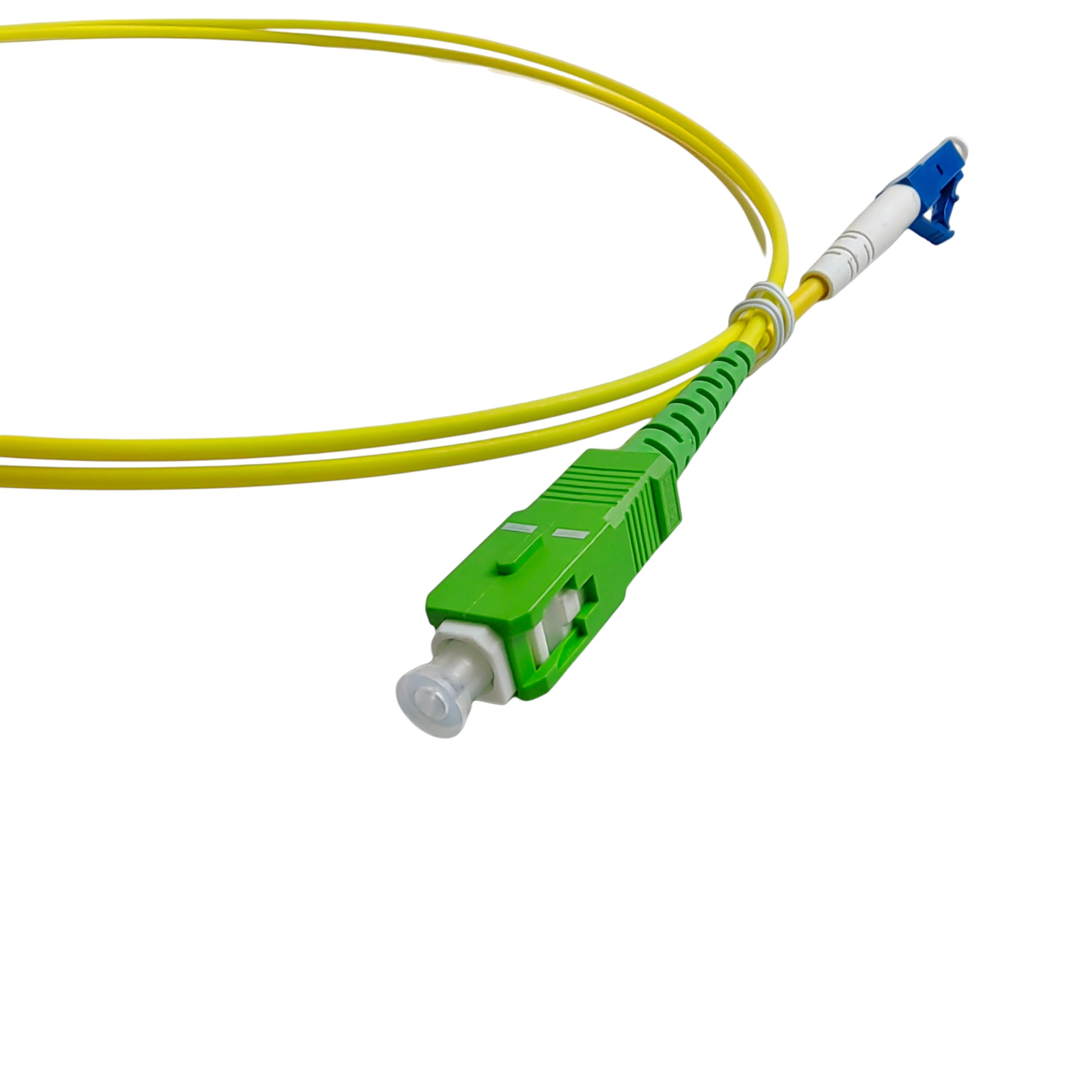

1M Fibre Optic Patch Cable SC/APC to LC/UPC Fibre Optic Patch Cable Singlemode Simplex

Name: 1M Fibre Optic Patch Cable SC/APC to LC/UPC Fibre Optic Patch Cable Singlemode Simplex
Brand: FIBAsource Ltd
SKU: ZJ-R35L-YMG0
Price: 9.97 GBP
Availability: InStock

£9.97 GBP

~~£9.97 GBP~~ £9.97 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Commercial-Grade Performance: Our 1-meter SC/APC to LC/UPC single-mode simplex fibre optic patch cables adhere to the highest industry standards, including IEC, and RoHS, ensuring reliability and compliance.
Ideal for diverse fibre networks, including CATV-type FTTH, FTTB, and FTTP systems.
Rigorous Quality Assurance: Each jumper undergoes meticulous optical testing for insertion loss, guaranteeing a consistently high-quality product.
Optimized Fibre Design: Crafted from simplex optical fibre, our cables boast minimal insertion loss (SC ≤ 0.3dB) and exceptional return loss (SC ≥ 60dB).
With interchangeability and vibration levels ≤0.2dB, they offer unparalleled performance and stability in varied operating conditions (-40~75℃).
Comprehensive Product Detail: Featuring SC APC to LC connectors, a length of 1 meter (3.28 feet), and a fibre mode of 9/125μm, our cables ensure seamless connectivity across networks.
With a wavelength range of 1310/1550nm and a LSZH jackets in vibrant yellow, they cater to diverse installation requirements.
Enhanced Versatility: Our patch cables are engineered to deliver superior performance in demanding environments, making them the top choice for mission-critical fibre optic installations.

Fibre Type:	Singlemode Simplex LC/UPC to SC/APC
Connector A:	LC/UPC Simplex
Connector B:	SC/APC Simplex
Sheath Type:	LSZH (Low Smoke Zero Halogen)
Insertion Loss:	≤0.2dB
Return Loss (LC/UPC):	≥50dB
Return Loss (LC/APC):	≥60dB
Cable Diameter:	2.0 mm
Operating Temperature:	-20° to +70°C (-4° to 158°F)
Certification:	CE, RoHS, FCC
Part Number:	SC/APC-LC-PC
