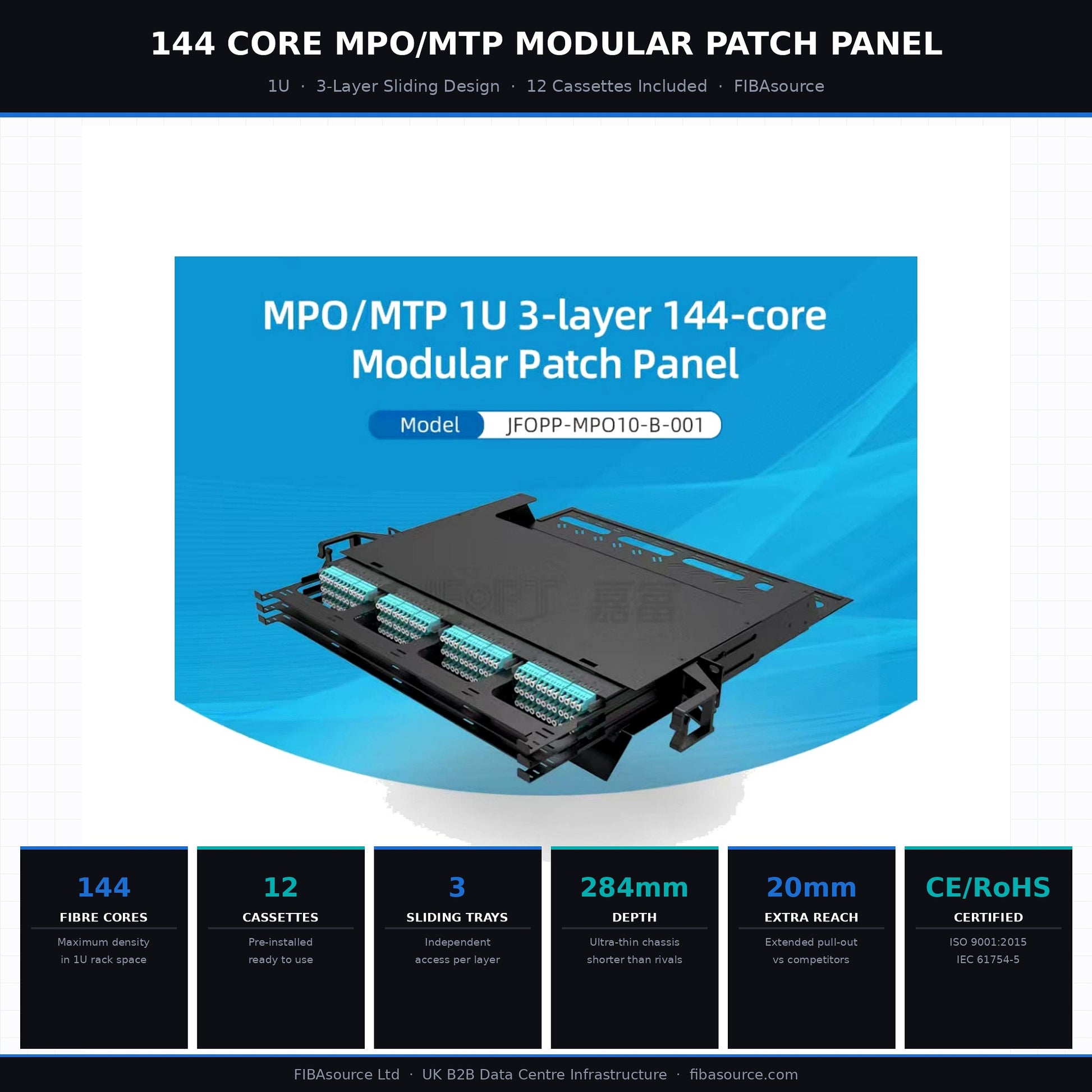

FIBAsource 1U 144 Core MPO/MTP 3-Layer Modular Fibre Patch Panel — LC OM4 | 12 Cassettes Included

The FIBAsource 144 Core MPO/MTP Modular Patch Panel delivers industry-leading fibre density in a single 1U rack space. Featuring a unique 3-layer sliding tray design with 12 MPO cassette slots, this chassis supports up to 144 fibre cores — making it the ideal solution for high-density data centres, AI infrastructure, backbone networks, SAN systems and fibre to the building deployments.

The ultra-thin pull-out chassis accommodates three independent sliding trays, each housing four MPO cassette slots. Cassettes are tool-free and snap in and out in seconds, allowing rapid reconfiguration without disturbing live connections. A flip-down front door protects front cabling from accidental interference or damage.

Three integrated front cable management channels with side cable rings keep patch leads organised and correctly routed. An optional extended tail plate (sold separately) adds rear cable management capability, extending chassis depth to 379mm.

Fully supplied with 12 x 12-core MPO/LC OM4 cassettes, Velcro ties, zip ties and rack mounting hardware — ready to install immediately out of the box.

KEY FEATURES

• 144 fibre cores in 1U — maximum rack space efficiency
• 3-layer sliding rail design with 20mm extra pull-out vs comparable products
• 12 MPO cassette slots — 4 per tray across 3 independent trays
• Tool-free cassette swap — press clips on both sides to release
• Flip-down front door protects front cabling
• 3 independent front cable management channels
• Side cable rings for guided routing
• Optional extended tail plate for rear cable management
• Adjustable sliding mounting bracket holes for flexible rack positioning
• Each cassette labelled with wiring diagram for quick verification
• Cold-rolled steel chassis with electrostatic powder coat finish

STANDARDS AND CERTIFICATIONS

CE Certified | RoHS Compliant | FCC Compliant | ISO 9001:2015 | IEC 61754-5

SPECIFICATIONS

IN THE BOX

• 1x 1U 3-layer MPO/MTP sliding chassis
• 12x 12-core MPO/LC OM4 cassettes
• 30x Velcro ties (12x100mm)
• 20x Zip ties (3x100mm)
• 4x Rack nut and screw sets
• 1x Extended tail plate (optional — specify if required)

PACKAGING

Without tail plate:

• Chassis: 482x45x284mm
• Inner box: 485x70x335mm (1 unit per inner box)
• Outer box: 505x260x355mm (3 units per outer box)

With extended tail plate:

• Chassis: 482x45x379mm
• Inner box: 485x70x430mm
• Outer box: 505x260x450mm
