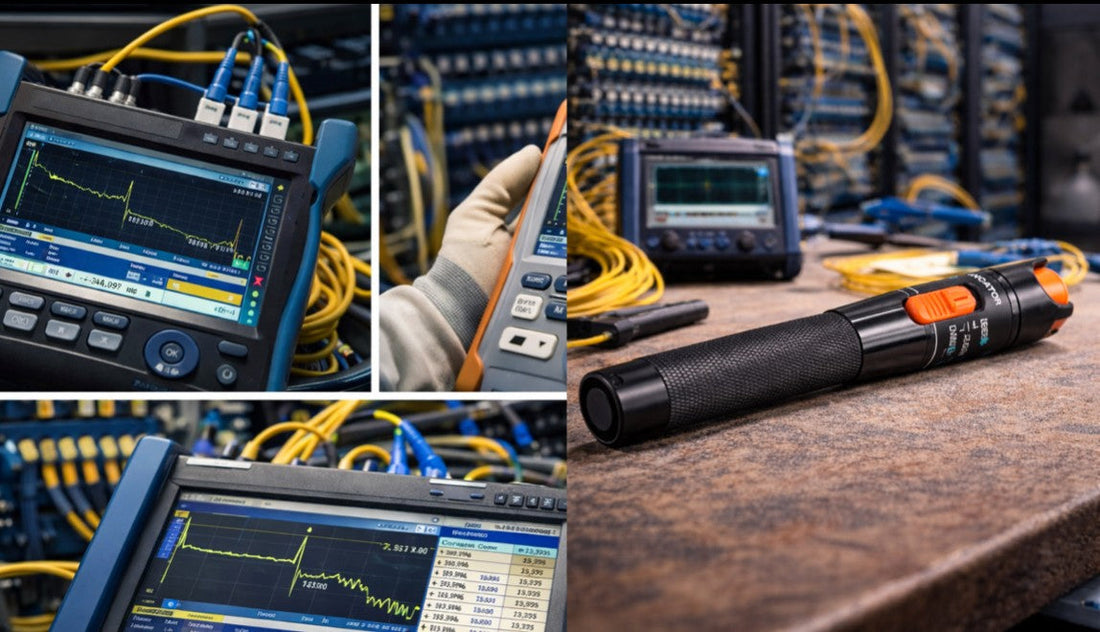

Visual Fault Locator vs OTDR: Which Fiber Testing Tool Do You Need?

Understanding Fiber Optic Testing Tools

When it comes to fiber optic cable testing and troubleshooting, two tools dominate the conversation: Visual Fault Locators (VFLs) and Optical Time Domain Reflectometers (OTDRs). Both are essential for network technicians, but they serve different purposes and come at vastly different price points. This guide will help you understand which tool is right for your specific needs.

What is a Visual Fault Locator (VFL)?

A Visual Fault Locator is a handheld device that transmits visible red light (typically 650nm) through fiber optic cables to identify breaks, bends, and faulty connections. The bright red light is visible through the fiber jacket at fault points, making it easy to spot problems quickly.

VFL Key Features:

• Price range: £15-£150
• Detection range: 1km to 30km depending on model
• Identifies breaks, sharp bends, and bad splices
• Works with both single-mode and multimode fiber
• Portable and battery-powered
• No technical training required

Best Use Cases for VFLs:

• Quick continuity testing during installation
• Identifying visible breaks in patch cables
• Locating faulty connectors in patch panels
• FTTH drop cable troubleshooting
• Pre-splice verification

What is an OTDR?

An Optical Time Domain Reflectometer is a sophisticated testing instrument that sends light pulses down the fiber and analyzes the reflected signals to create a detailed trace of the entire fiber link. It provides precise measurements of loss, distance to faults, splice quality, and overall link performance.

OTDR Key Features:

• Price range: £2,000-£20,000+
• Provides exact distance to faults (within meters)
• Measures insertion loss at each connection point
• Generates detailed trace reports for documentation
• Identifies reflective and non-reflective events
• Essential for certification and compliance
• Requires technical knowledge and training

Best Use Cases for OTDRs:

• Network certification and documentation
• Long-haul fiber characterization
• Precise fault location in buried cables
• Splice loss verification
• Acceptance testing for new installations
• Troubleshooting complex network issues

Head-to-Head Comparison

Feature	Visual Fault Locator	OTDR
Cost	£30-£150	£2,000-£20,000+
Ease of Use	Very simple, no training needed	Requires training and experience
Fault Location Accuracy	Visual approximation only	Precise to within meters
Testing Speed	Instant visual results	Minutes per test
Documentation	None	Detailed reports and traces
Portability	Pocket-sized	Handheld to cart-mounted
Best For	Quick troubleshooting, installation	Certification, complex diagnostics

Which Tool Should You Choose?

Choose a VFL if you:

• Primarily work on short fiber runs (under 2km)
• Need quick go/no-go testing during installations
• Work with FTTH drop cables and patch panels
• Have a limited budget
• Don't require formal documentation
• Need a tool for daily troubleshooting

Choose an OTDR if you:

• Need to certify fiber installations
• Work on long-haul or metro fiber networks
• Require precise fault location data
• Must provide detailed test reports to clients
• Troubleshoot complex multi-span links
• Need to verify splice quality and loss budgets

The Best Solution: Both

For most professional fiber technicians, the ideal toolkit includes both instruments. Use a VFL for quick daily troubleshooting and a visual check before splicing, then deploy the OTDR for final certification, documentation, and complex fault diagnosis. Many technicians start with a quality VFL and add an OTDR as their business grows and client requirements demand it.

Recommended Models

At FIBAsource, we stock professional-grade testing equipment for every budget:

• Entry-level VFLs (5km-10km range) - Perfect for FTTH installers and patch cable testing
• Professional VFLs (30km range) - Ideal for longer fiber runs and outdoor installations
• Combination tools - Some fiber identifier and power meter kits include built-in VFL functionality

Conclusion

Both Visual Fault Locators and OTDRs are invaluable tools for fiber optic professionals, but they serve different purposes. VFLs excel at quick, visual troubleshooting and are essential for daily installation work, while OTDRs provide the precision and documentation required for network certification and complex diagnostics. Assess your specific needs, budget, and client requirements to determine which tool—or combination of tools—will best serve your fiber optic testing needs.

Need help selecting the right testing equipment? Contact our technical team for personalized recommendations based on your specific applications.
