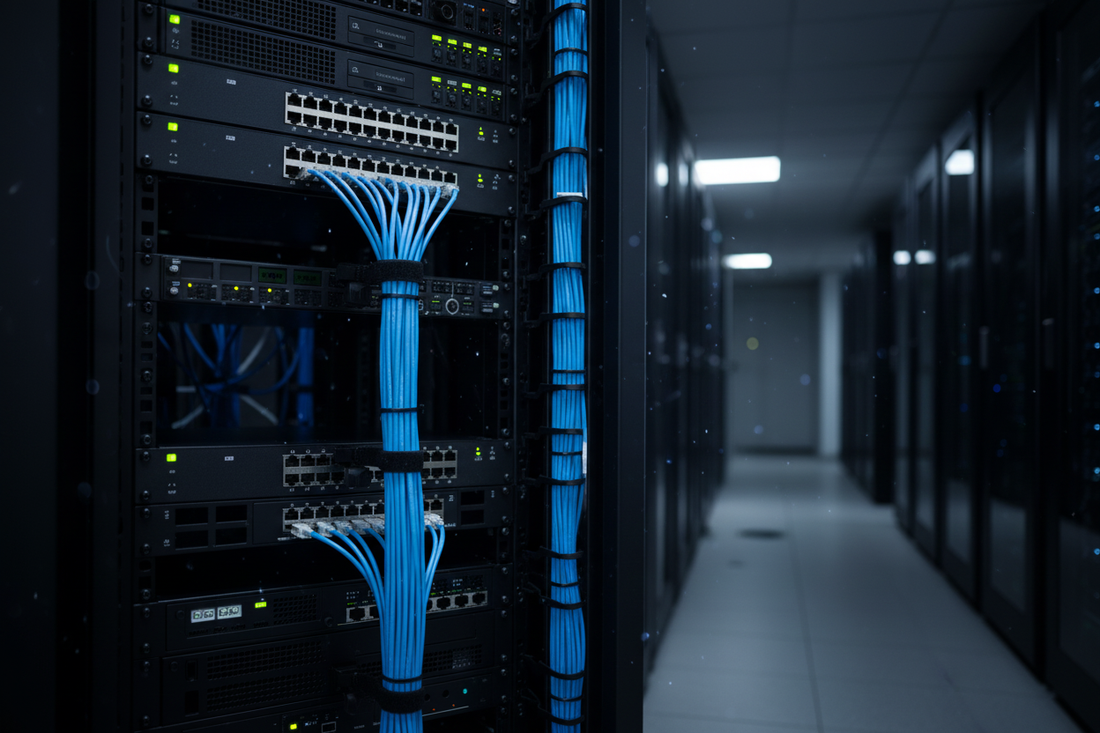

Patch Panels for Data Centres: A Practical Guide

Patch Panels for Data Centres: A Practical Guide

In any data centre, server room, or structured cabling installation, the patch panel is the backbone of your copper infrastructure. It provides a centralised, organised termination point for horizontal cabling runs — making moves, adds, and changes (MACs) fast, clean, and traceable. All FIBAsource patch panels are aligned with BS EN 50173 (the British and European standard for generic cabling systems) and ISO/IEC 11801, ensuring your installation meets recognised industry standards from day one.

Why Patch Panels Matter in Data Centres

Without a patch panel, direct cable runs between switches and endpoints become unmanageable at scale. A well-specified patch panel installation gives you:

  • Centralised cable management — all horizontal runs terminate in one location per rack
  • Flexibility — ports can be re-patched without disturbing structured cabling
  • Traceability — labelled ports support documentation and fault diagnosis
  • Reduced downtime — MACs are completed at the panel, not behind equipment
  • Standards compliance — aligned with BS EN 50173-1 (general requirements), BS EN 50173-2 (office premises), and BS EN 50173-5 (data centres), as well as ISO/IEC 11801 and ISO/IEC 24764 for data centre cabling

Cat6 vs 10G: Choosing the Right Specification

For modern data centre and server room deployments, Cat6 with 10G support is the minimum recommended specification. Cat6 supports 10 Gigabit Ethernet up to 55 metres and Gigabit Ethernet up to 100 metres — sufficient for the majority of horizontal cabling runs within a data centre floor, and fully within the channel length limits defined by BS EN 50173-5.

Key considerations when specifying:

  • Port count — match to your switch density and rack layout (12, 24, or 48 port)
  • Termination method — punch-down (110 IDC) for permanent installations; keystone for modular flexibility
  • Shielding — STP/FTP panels for environments with high EMI (plant rooms, industrial ICT); required under BS EN 50174-2 in certain environments
  • Rack unit (U) height — 1U panels are standard; higher port-density panels may require 2U

FIBAsource Patch Panel Range

FIBAsource stocks a focused range of Cat6 patch panels suited to professional data centre, MSP, and ICT installer applications — all aligned with BS EN 50173 structured cabling standards:

48 Port Cat6 Patch Panel

The FIBAsource 48 Port Cat6 Patch Panel is the high-density option for fully populated racks. Ideal for data centres and large server rooms where switch port density is maximised and cable management is critical. 1U form factor keeps rack space efficient and supports BS EN 50173-5 data centre cabling architectures.

24 Port Cat6 Patch Panel — Punch Down

The 24 Port Patch Panel with 10G Support is a 19-inch, punch-down terminated panel suited to standard rack installations. 10G-ready and straightforward to terminate on site — a reliable choice for MSP deployments and ICT fit-outs requiring BS EN 50173 compliance.

24 Port Cat6 Patch Panel — Inline Keystone

The Cat6 24 Port Patch Panel with Inline Keystone offers modular flexibility — individual keystone jacks can be replaced without re-terminating the entire panel. Well suited to environments where port configurations may change, or where phased installation is planned in line with BS EN 50173 zone cabling principles.

12 Port Cat6 Patch Panel

The FIBAsource 12 Port Cat6 Patch Panel is the compact option for smaller racks, comms rooms, and edge deployments. Ideal for MSPs managing distributed sites or ICT installers working on smaller commercial fit-outs aligned with BS EN 50173-2.

Inline Adapters and Couplers

For extending patch leads or creating inline connections without a full panel, the RJ45 Shielded Inline Coupler (15-pack) provides a shielded, reliable solution. Useful for temporary extensions, test setups, or supplementing existing patch panel installations.

Installation Best Practice

For a clean, BS EN 50173-compliant installation:

  • Always use a cable management bar (1U) above or below each patch panel to route patch leads neatly
  • Label both the panel port and the corresponding switch port before patching — required for BS EN 50174-1 documentation
  • Maintain bend radius on horizontal runs — avoid sharp bends at the rear of the panel (minimum bend radius per BS EN 50174-2)
  • Test each terminated port with a cable tester before patching to the switch; certification testing should reference BS EN 50173 channel and permanent link limits
  • Document port assignments in a rack elevation diagram for future MACs — a requirement under BS EN 50174-1 installation planning

Pairing Copper and Fibre Infrastructure

In data centres running hybrid copper and fibre infrastructure — as defined in BS EN 50173-5 — patch panels work alongside fibre distribution frames and coupler panels. FIBAsource also stocks the Fibre Optic Coupler Series for fibre patching requirements within the same rack environment.

Need help specifying the right patch panel configuration for your BS EN 50173-compliant project? Browse the full FIBAsource copper cabling range or get in touch with our team.
