Fibre Optic Cable Fusion Splicing Tutorial: Techniques and Best Practices

Introduction:

Fusion splicing is a crucial technique in fibre optic cable installations, allowing for the permanent joining of two optical fibres to create a seamless connection. Mastering fusion splicing requires knowledge of techniques and best practices to ensure optimal performance and reliability. In this comprehensive tutorial, we'll explore the fundamentals of fibre optic cable fusion splicing, including techniques, equipment, and best practices to help you achieve successful splices in your fibre optic network installations.



Fundamentals of Fusion Splicing:

1. Principle of Fusion Splicing:

   - Fusion splicing involves the precise alignment and fusion of two fibre optic cables using heat to melt and merge their ends together.

   - The fusion process creates a seamless connection between the fibres, minimising signal loss and ensuring efficient data transmission.



2. Types of Fusion Splicing:

   - Core Alignment Fusion Splicing: Aligns the cores of the two fibres to achieve low insertion loss and high tensile strength.

   - Clad Alignment Fusion Splicing: Aligns the outer cladding of the fibres, suitable for multimode fibres and less critical applications.



Equipment for Fusion Splicing:

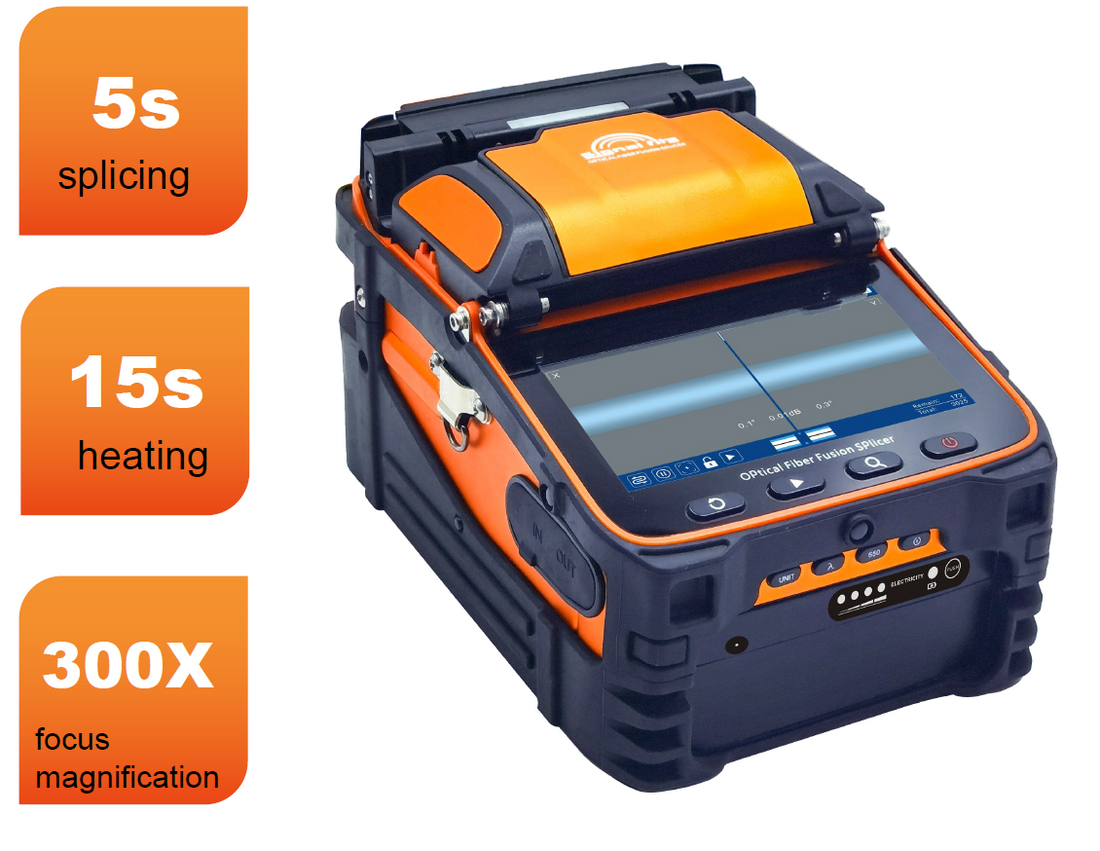

1. Fusion Splicing Machine:

   - A fusion splicing machine aligns and fuses the fibres together using heat.

   - Features include automatic alignment, arc discharge or laser heat source, and splice quality monitoring.



2. Fibre Cleaver:

   - A fibre cleaver is used to create a clean and perpendicular end face on the fibre optic cable before splicing.

   - Proper cleaving ensures precise alignment and reliable fusion.



Techniques for Fusion Splicing:

1. Preparing the Fibres:

   - Strip the protective coatings from the fibre ends using a precision fibre stripper.

   - Clean the stripped fibres with alcohol wipes to remove any contaminants.



2. Cleaving the Fibres:

   - Use a fibre cleaver to create a flat and perpendicular end face on each fibre.

   - Ensure the cleave angle and length meet manufacturer specifications for optimal splicing.



3. Aligning the Fibres:

   - Place the cleaved fibres into the fusion splicing machine's V-grooves or holders for alignment.

   - Use the machine's automatic alignment feature or adjust the fibres manually for precise alignment.



4. Fusing the Fibres:

   - Initiate the fusion process using the machine's heat source (arc discharge or laser).

   - Monitor the fusion process and inspect the splice for quality and integrity.



Best Practices for Fusion Splicing:

1. Maintain Cleanliness:

   - Keep the fusion splicing machine and work area clean and free of debris to prevent contamination.

   - Clean and inspect the fibres and cleaver regularly to ensure optimal performance.



2. Follow Manufacturer Guidelines:

   - Adhere to the manufacturer's instructions and specifications for equipment setup, operation, and maintenance.

   - Use compatible splicing consumables and accessories recommended by the manufacturer.



3. Practice Consistency:

   - Develop standardised procedures and techniques for fusion splicing to ensure consistency and reliability.

   - Document splice parameters and settings for reference and troubleshooting.



Conclusion:

Mastering fusion splicing is essential for achieving reliable and efficient fibre optic cable connections in network installations. By understanding the principles, equipment, techniques, and best practices of fusion splicing, technicians can ensure successful splices and optimal performance in their fibre optic networks.
