Cat5e vs Cat6 vs Cat6a vs Cat7 Cable: Complete Specification Comparison Guide

Cat5e vs Cat6 vs Cat6a vs Cat7 Cable: Complete Specification Comparison Guide

Understanding Copper Cable Categories for Network Installation

When specifying copper cabling for network installations, choosing the right category can significantly impact performance, cost, and future-proofing. This guide compares the specifications and practical differences between Cat5e, Cat6, Cat6a, and Cat7 cables to help you make informed decisions for your projects.

Quick Comparison Table

Specification Cat5e Cat6 Cat6a Cat7
Max Bandwidth 100 MHz 250 MHz 500 MHz 600 MHz
Max Speed 1 Gbps 1 Gbps (10 Gbps up to 55m) 10 Gbps 10 Gbps
Max Distance (10 Gbps) N/A 55 meters 100 meters 100 meters
Max Distance (1 Gbps) 100 meters 100 meters 100 meters 100 meters
Shielding UTP (typically) UTP or F/UTP F/UTP or S/FTP S/FTP (required)
Conductor Gauge 24 AWG 23-24 AWG 23 AWG 23 AWG
Typical Use Case Basic networking, VoIP Gigabit networks, PoE 10G networks, PoE++ Data centers, specialised

Cat5e (Category 5 Enhanced)

Technical Specifications

  • Bandwidth: 100 MHz
  • Data Rate: Up to 1 Gbps (1000BASE-T)
  • Maximum Length: 100 meters (328 feet)
  • Pairs: 4 twisted pairs
  • Typical Construction: Unshielded Twisted Pair (UTP)
  • Standards: TIA/EIA-568-B, ISO/IEC 11801

Key Characteristics

Cat5e remains the minimum standard for modern Ethernet installations. It improved upon Cat5 by reducing crosstalk and supporting Gigabit Ethernet. The cable uses four twisted pairs with tighter twist specifications than its predecessor, providing better signal integrity.

Best Applications

  • Residential and small office networks
  • VoIP telephone systems
  • Basic PoE devices (cameras, access points)
  • Budget-conscious installations where 1 Gbps is sufficient

Cat6 (Category 6)

Technical Specifications

  • Bandwidth: 250 MHz
  • Data Rate: Up to 10 Gbps (10GBASE-T) for distances up to 55 meters; 1 Gbps up to 100 meters
  • Maximum Length: 100 meters for 1 Gbps, 55 meters for 10 Gbps
  • Pairs: 4 twisted pairs with tighter specifications
  • Typical Construction: UTP or F/UTP (foiled)
  • Standards: TIA/EIA-568-B.2-1, ISO/IEC 11801

Key Characteristics

Cat6 features a thicker wire gauge (typically 23 AWG vs 24 AWG) and more stringent specifications for crosstalk and system noise. Many Cat6 cables include a spline or separator to isolate the pairs, reducing alien crosstalk. The cable jacket is often thicker than Cat5e.

Best Applications

  • Commercial office networks
  • PoE and PoE+ installations
  • Short-run 10 Gigabit connections (under 55m)
  • Future-proofing for moderate bandwidth growth

Cat6a (Category 6 Augmented)

Technical Specifications

  • Bandwidth: 500 MHz
  • Data Rate: Up to 10 Gbps (10GBASE-T)
  • Maximum Length: 100 meters at full 10 Gbps
  • Pairs: 4 twisted pairs with enhanced shielding
  • Typical Construction: F/UTP or S/FTP (shielded)
  • Standards: TIA/EIA-568-B.2-10, ISO/IEC 11801 Class EA

Key Characteristics

Cat6a eliminates the distance limitation of Cat6 for 10 Gbps transmission. It features improved alien crosstalk specifications (ANEXT) and typically includes shielding. The cable diameter is noticeably larger than Cat6, which can impact conduit fill and bend radius requirements. Cat6a supports higher power PoE applications (PoE++ up to 100W).

Best Applications

  • Enterprise networks requiring 10 Gbps
  • Data centers and server rooms
  • High-power PoE++ devices (PTZ cameras, LED lighting)
  • Long-term infrastructure investments
  • Healthcare and industrial environments requiring shielding

Cat7 (Category 7)

Technical Specifications

  • Bandwidth: 600 MHz
  • Data Rate: Up to 10 Gbps (10GBASE-T)
  • Maximum Length: 100 meters
  • Pairs: 4 individually shielded twisted pairs
  • Construction: S/FTP (shielded/foiled twisted pair) - required
  • Standards: ISO/IEC 11801 Class F (not TIA/EIA recognized)
  • Connector: GG45 or TERA (backward compatible with RJ45 using adapters)

Key Characteristics

Cat7 features the most robust shielding with both individual pair shielding and an overall shield (S/FTP). Each pair is wrapped in foil, and the entire cable bundle is shielded. This provides maximum protection against EMI and crosstalk. Note that Cat7 is an ISO/IEC standard but not officially recognized by TIA/EIA, limiting its adoption in North America.

Best Applications

  • Specialised data center applications
  • High-EMI environments (industrial, medical)
  • Installations requiring maximum future-proofing
  • European markets where ISO standards dominate

Important Consideration

Cat7 requires proper grounding of shields to be effective. Improper installation can negate shielding benefits. Additionally, standard RJ45 connectors don't meet Cat7 specifications—GG45 or TERA connectors are required for full performance, though RJ45 adapters are commonly used.

Key Differences Summary

Bandwidth and Speed

The progression from Cat5e to Cat7 represents increasing bandwidth capacity: 100 MHz, 250 MHz, 500 MHz, and 600 MHz respectively. However, both Cat6a and Cat7 support the same 10 Gbps data rate over 100 meters, making Cat7's additional bandwidth primarily beneficial for specialised applications or future standards.

Shielding

Shielding increases with each category. Cat5e is typically unshielded (UTP), Cat6 may be unshielded or foiled (F/UTP), Cat6a is usually shielded (F/UTP or S/FTP), and Cat7 requires full shielding (S/FTP). More shielding provides better EMI protection but increases cable cost, diameter, and installation complexity.

Physical Characteristics

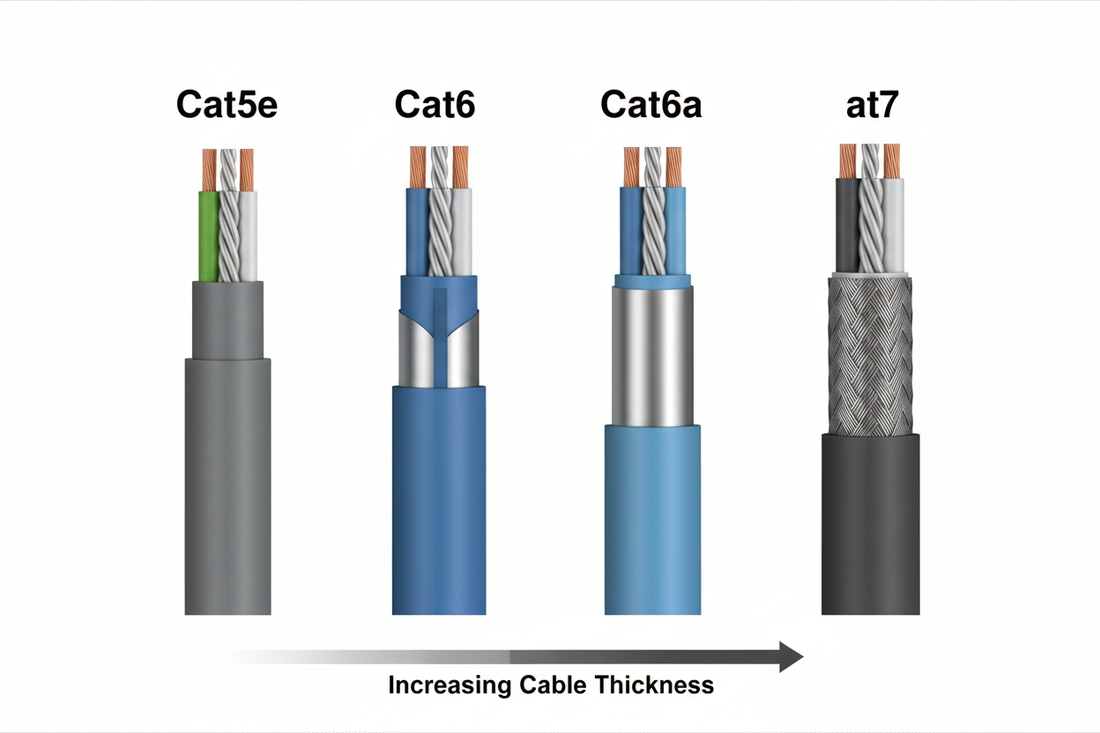

Cable diameter and stiffness increase with category. Cat5e is the most flexible and easiest to install, while Cat7 is the thickest and least flexible. This affects conduit fill calculations, minimum bend radius, and installation labor costs.

Cost Considerations

Material costs increase significantly with each category. Installation costs also rise due to larger cable diameter, stricter bend radius requirements, and (for Cat7) specialised connectors and grounding requirements.

Choosing the Right Cable

Choose Cat5e if:

  • Budget is the primary concern
  • 1 Gbps speeds are sufficient for the foreseeable future
  • Installing in residential or small office environments
  • Running short patch cables

Choose Cat6 if:

  • You need moderate future-proofing
  • 10 Gbps may be needed for short runs (under 55m)
  • Supporting PoE+ devices
  • Balancing cost and performance

Choose Cat6a if:

  • 10 Gbps is required over full 100-meter distances
  • Installing enterprise or data center infrastructure
  • Supporting PoE++ (high-power devices)
  • Maximum future-proofing is important
  • EMI protection is beneficial

Choose Cat7 if:

  • Operating in high-EMI environments
  • ISO/IEC standards compliance is required
  • Maximum shielding is necessary
  • Working in European markets
  • Specialised applications justify the cost premium

Installation Considerations

Bend Radius

Minimum bend radius increases with cable category. Violating bend radius specifications can degrade performance or damage the cable. Cat6a and Cat7 require careful planning for tight spaces and cable management.

Termination

Higher category cables require more precise termination. Cat6a and Cat7 are less forgiving of poor termination practices. Shielded cables require proper grounding at both ends for optimal performance.

Testing

Each category requires testing to its specific frequency range. Cat6a and Cat7 installations should be certified with appropriate test equipment capable of measuring performance at 500 MHz and 600 MHz respectively.

Conclusion

For most commercial installations today, Cat6a represents the best balance of performance, cost, and future-proofing, providing full 10 Gbps capability over standard 100-meter distances. Cat6 remains suitable for installations where 10 Gbps is only needed for short runs or where budget constraints are significant. Cat5e is increasingly relegated to residential applications or non-critical connections. Cat7, while offering maximum performance, is typically reserved for specialized applications where its unique characteristics justify the cost premium and installation complexity.

When planning your installation, consider not just current requirements but anticipated growth over the cable's 10-15 year lifespan. The incremental cost of installing a higher category during initial construction is typically far less than the cost of re-cabling later.
